Atlantis Vision Elite Anterior Cervical Plate

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

By Material: Titanium (Solid)

DESCRIPTION

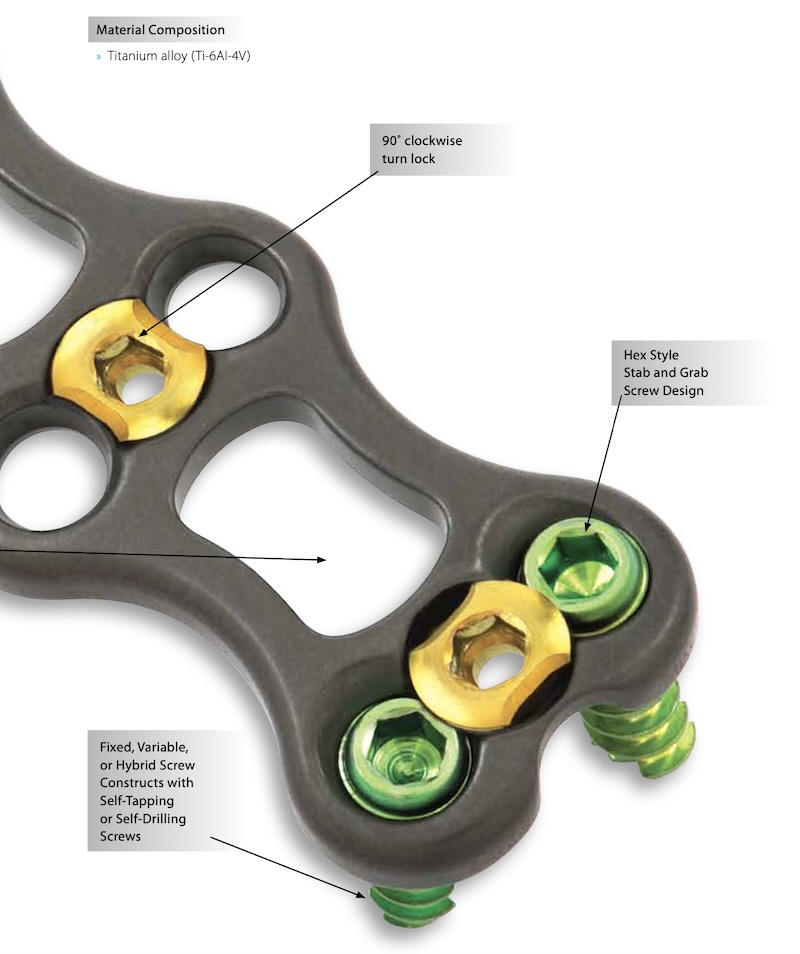

The Atlantis Vision Elite Anterior Cervical plate by Medtronic is a low profile anterior plate for the ACDF procedure and features single level to 5 level plate options with screw locking.

Features:


  • Titanium construction
  • Screw locking mechanism to prevent blackout
  • Hex head screw driver
  • Self tapping and self drilling screws
  • Fixed angle and variable angle screws
  • Fixed angle 12 degree cranial/caudal angulation
  • Variable angle 22 degree cranial caudal angulation
  • Plate sizes:
    • 17.8mm width
    • 1 level: 19-32.5mm in 2mm increments
    • 2 level: 27.5-55mm in 2.5mm increments
    • 3 level: 45-72.5mm in 2.5mm increments
    • 4 level: 67-85mm in 2.5mm increments
    • 5 level: 80-110mm in 2.5mm increments

Product Brochures and Guides
