Cabo ACP Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative

By Material: Titanium (Solid)

DESCRIPTION

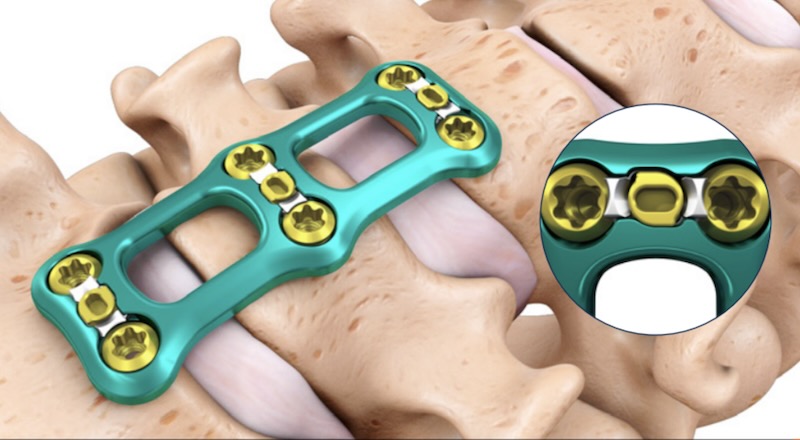

The Cabo ACP Anterior Cervical plating system by Seaspine (now owned by Orthofix is an anterior cervical plate for use in the ACDF procedure and is available in 1 to 5 level plate options.

Features:


  • Titanium construction
  • Locking screws with single central blocker
  • Self tapping and self drilling screw available
  • Variable or fixed angle screws
  • Large graft windows
  • Thin 2.1mm thick, 17mm width
  • 16 degree cranial-caudal angulation
  • Plate length optons:
    • 1 level: 10-26mm in 2mm increments
    • 2 level: 24-46mm in 2mm increments
    • 3 level: 39-69mm in 3mm increments
    • 4 level: 60-84mm in 4mm increments
    • 5 level: 85-100mm in 5mm increments

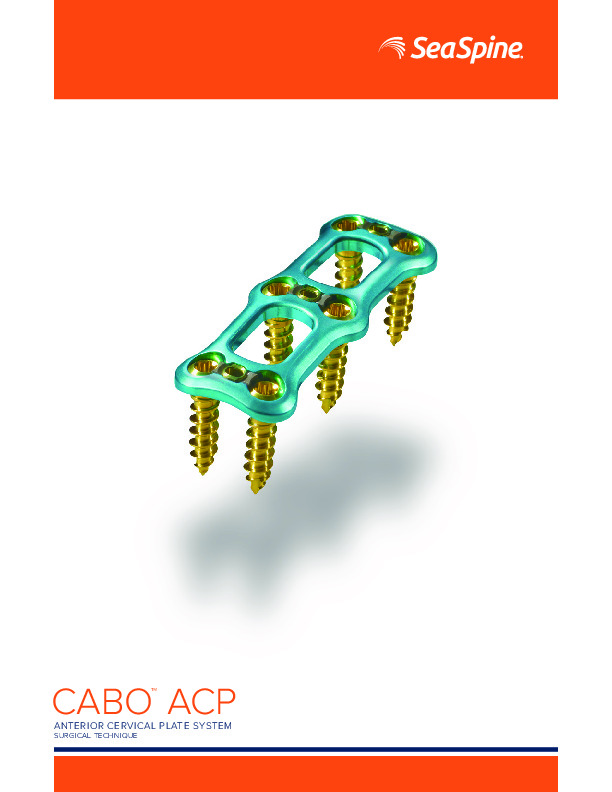

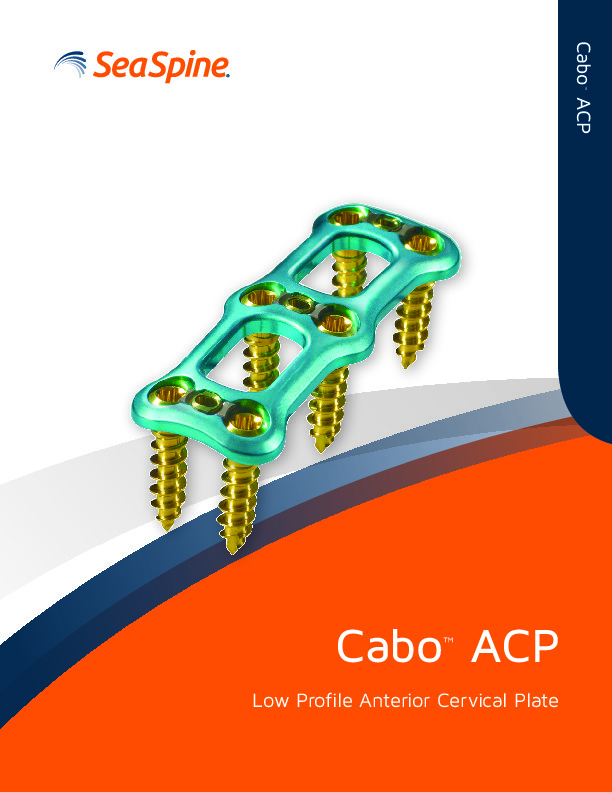

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
