CALIBER -L Lateral Expandable Interbody Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Lateral

Configuration: Cage Alone

By Material: PEEK/Titanium , PEEK Solid block

By Location/Approach: Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

Lateral Implant Width: 18mm , 22mm

DESCRIPTION

The CALIBER -L is a lateral lumbar expandable interbody spacer by Globus Medical. The spacer is made of a titanium center and expansion mechanism with PEEK endplates to help facilitate imaging. Eat cage has up to 5mm overall expansion.

Implant Footprint options:

  • 16mm Width: length options 25-40mm
  • 18mm Width: length options 40-60mm
  • 22mm Width: length options 40-60mm

Height Options:

  • 7-12mm starting heights
  • up to 5mm of total expansion

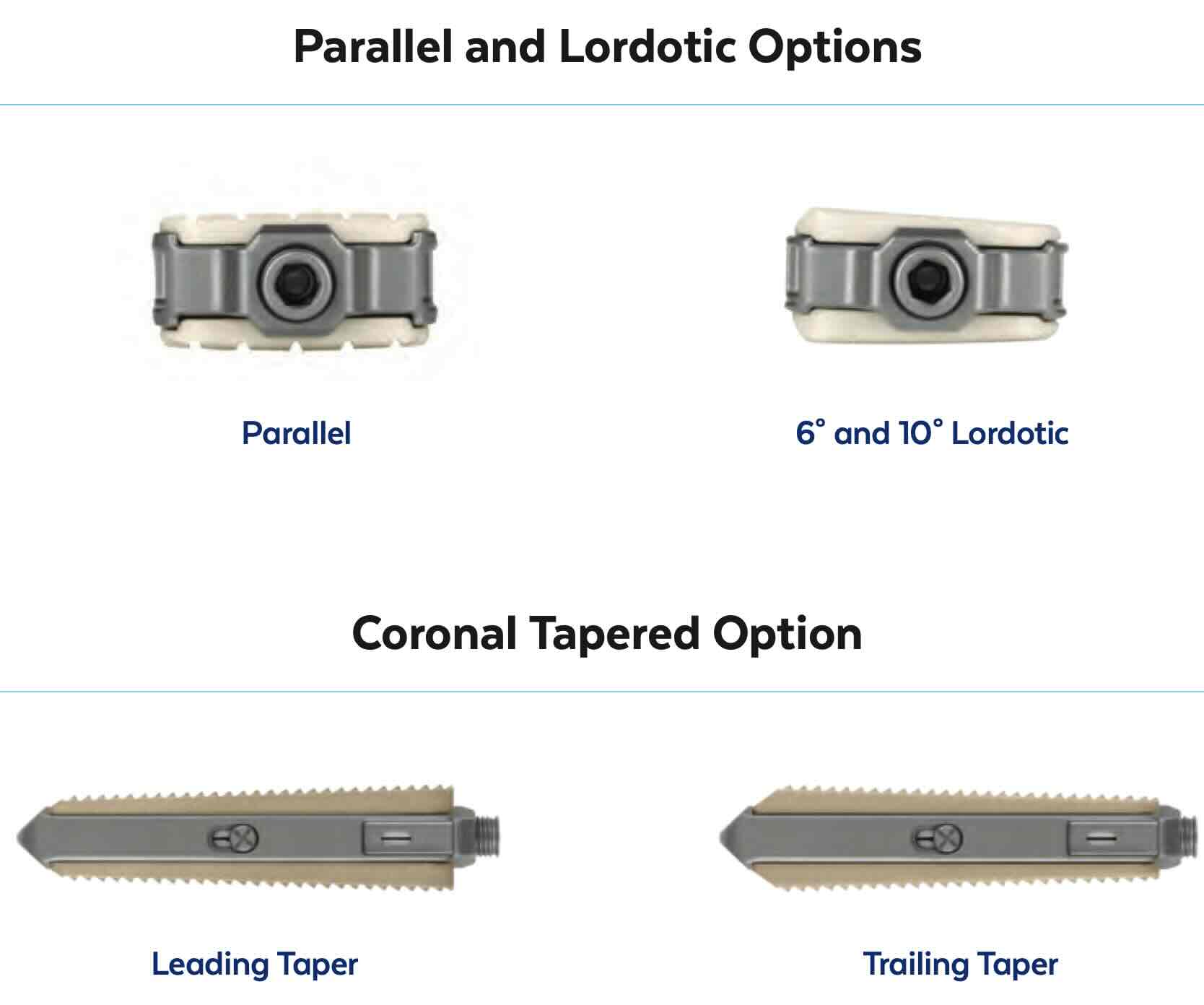

Lordotic Options:

  • Parallel
  • 6 degree
  • 10 degree

Coronal Taper options:





  • Leading taper
  • Trailing taper

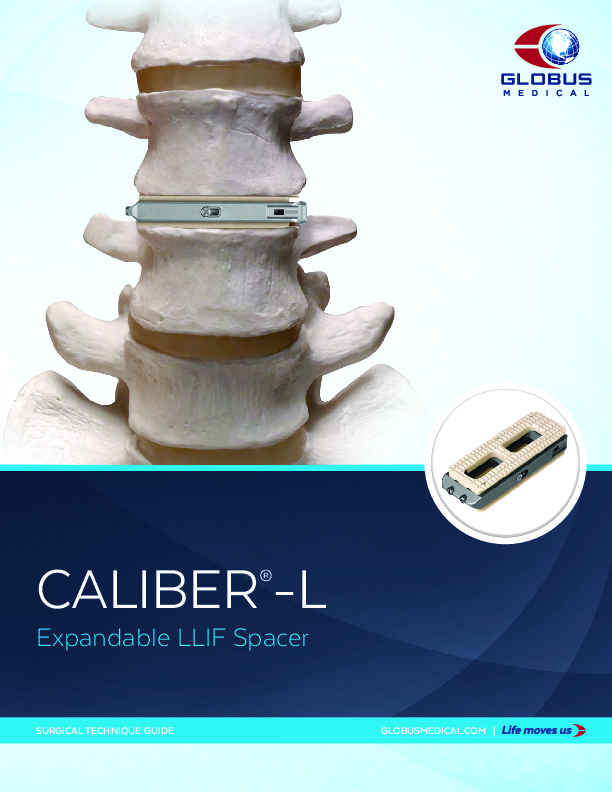

Product Brochures and Guides
