CD Horizon ModuLeX 5.5 Spinal System with NanoLOCK

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar)

Features: Detachable/ Modular Head , Polyaxial Head , Medial Cortical Screw , Self Tapping

Screw Materials: Titanium , Titanium Etched

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative , MIS/Perc

By Material: Titanium (Solid) , Titanium etched

DESCRIPTION

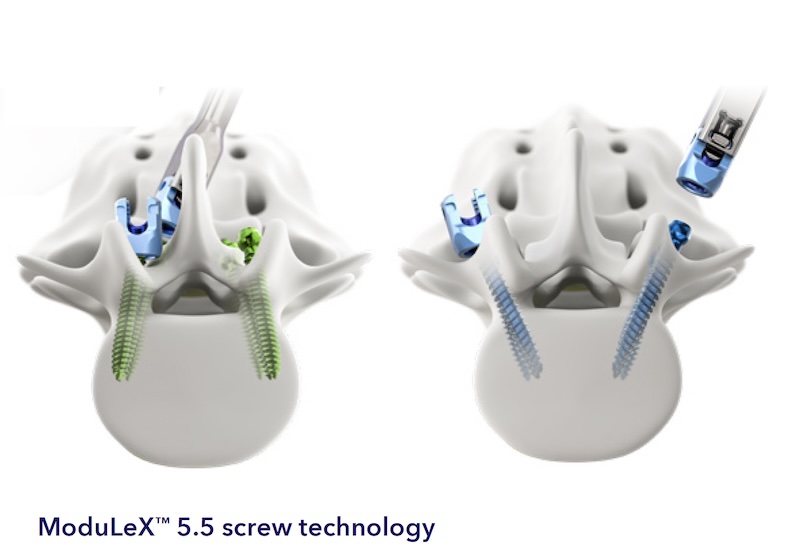

The CD Horizon ModuLeX 5.5 Spinal system by Medtronic is a complete thoracolumbar fixation system using the 5.5mm rod system. It features pedicle screws for use in the traditional pedicle screw as well as the medial cortical screw. In addition If features the option for Osteogrip threadform which has a cortical and cancellous thread.

Features:


  • Modular head
  • 54 degree cone of angulation
  • Screw options:
    • Cortical Shank: optimized for medial cortical screw placement
    • ATS (Awl Tip Screw): dual thread with self-drilling and self-tapping screw
    • Osteogrip: Dual thread features a 51% toggle reduction

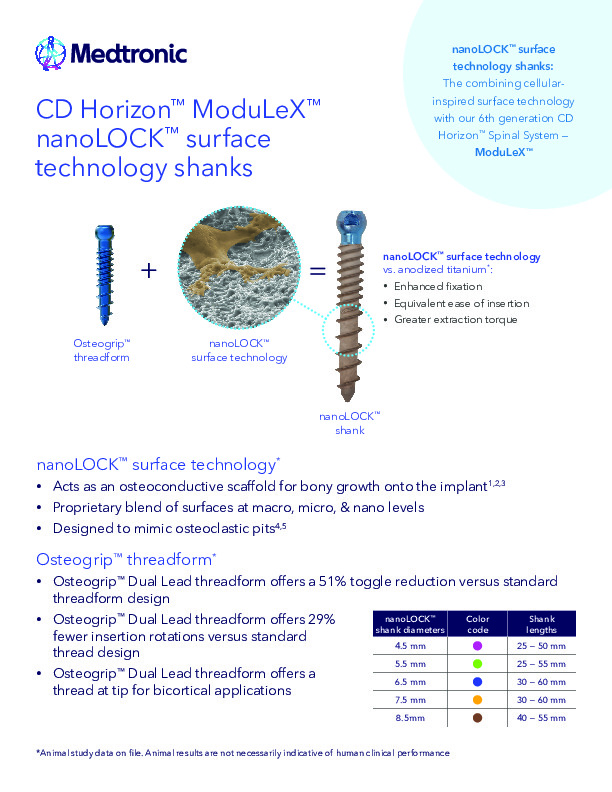

    • Osteogrip with nanoLOCK: Surface etched with Titan NanoLOCK technology for increased fixation that acts as an osteoconductive scaffold for bony ingrowth.
  • Screw size options:
    • Diameters: 4.5, 5.5, 6.5, 7.5, 8.5mm
    • Lengths: 25-60mm

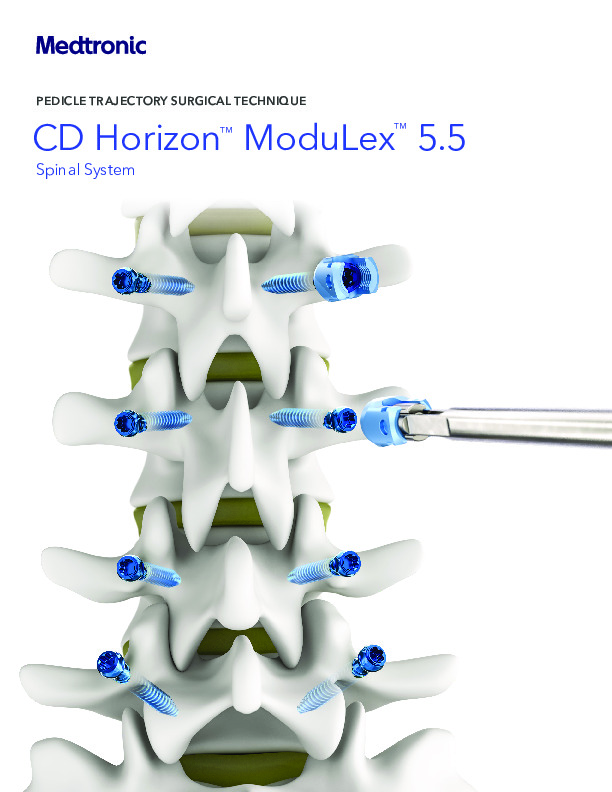

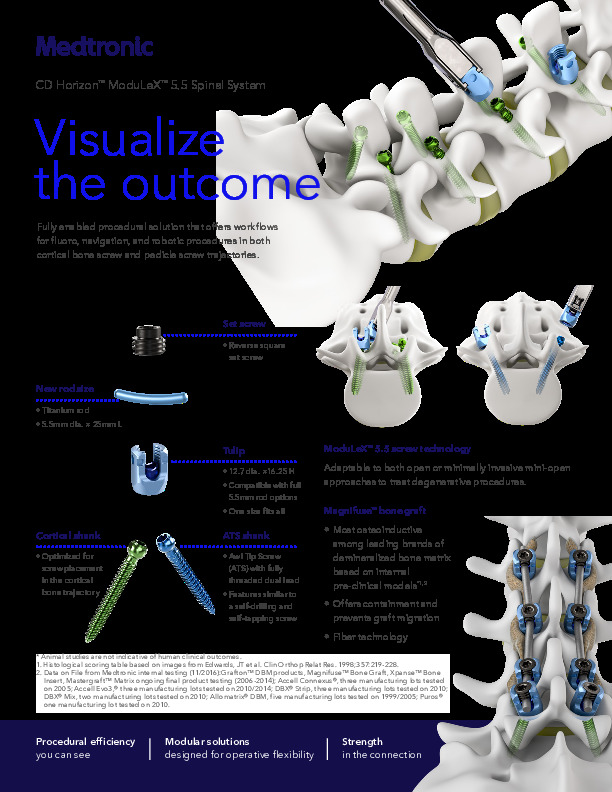

Product Brochures and Guides
