Product Category: Cranial Products/CSF Management/CSF Shunts
Shunt System Type: Ventriculoperitoneal (VP) Shunts , Pediatric Specific Valves
Valve Type: Fixed Pressure Valves
MRI Compatibility (Locking): MRI Permissible (Non-magnetic)
Antisiphon Properties: Flow Control Antisiphon

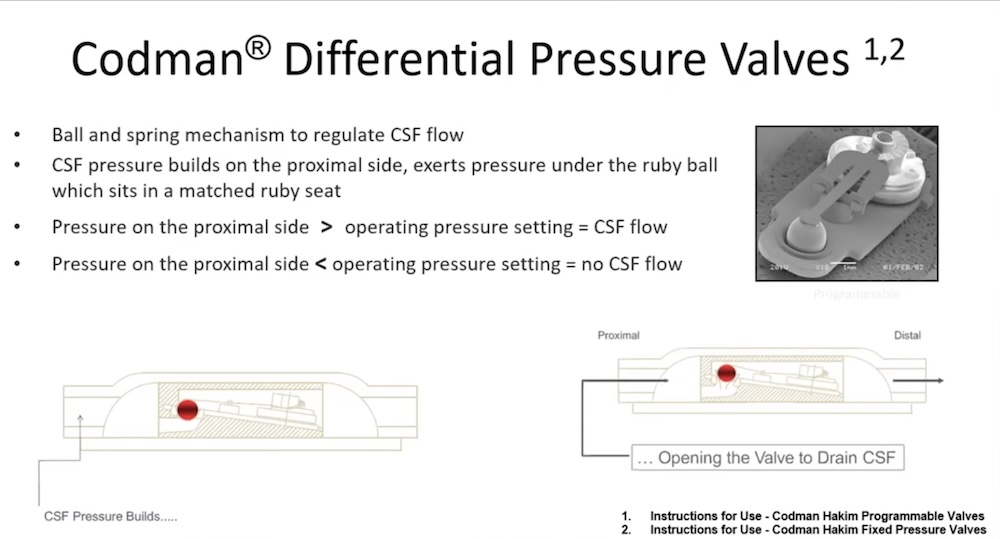

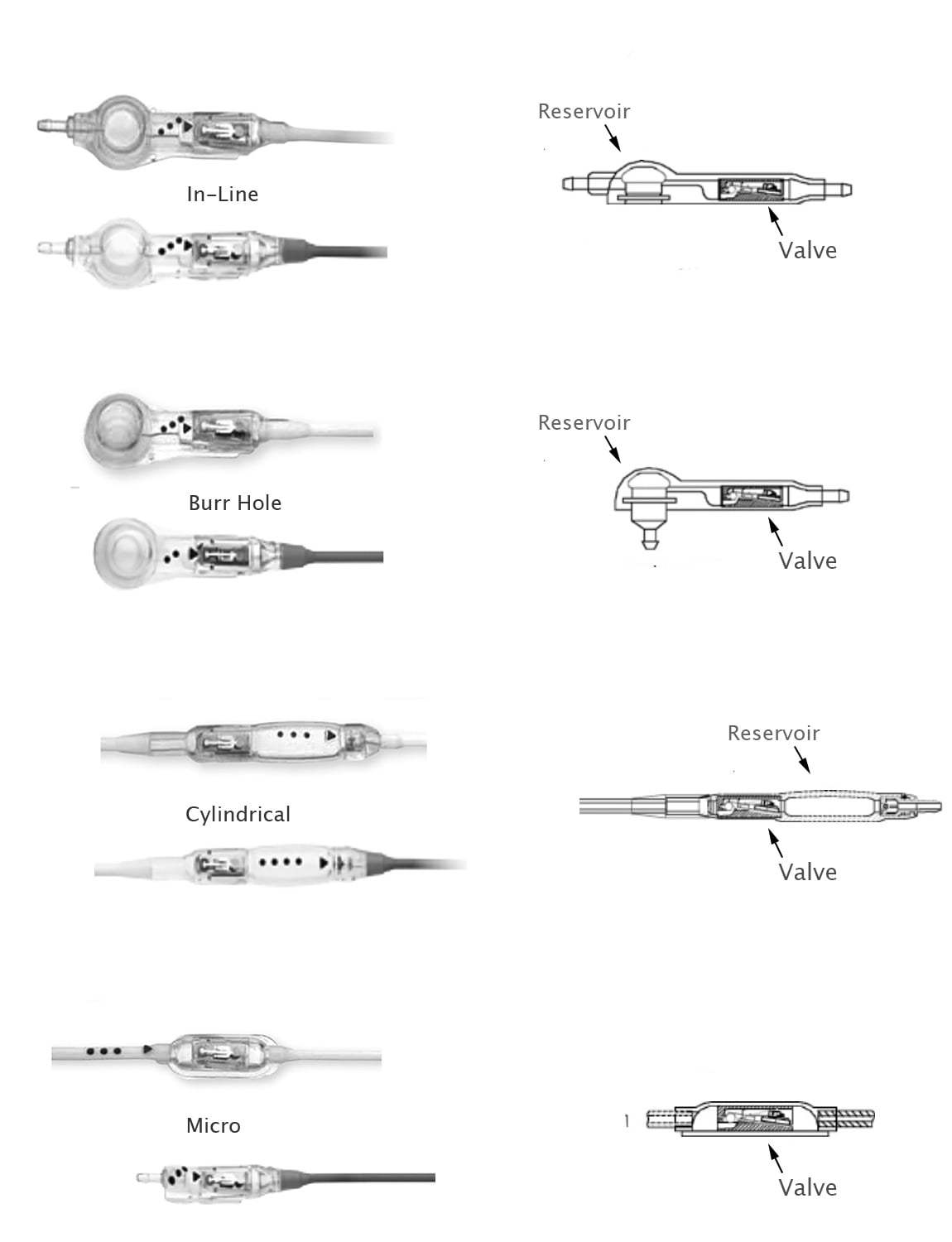

The Codman Hakim Precision Fixed Pressure CSF shunt valve by Integra is a fixed pressure ball-in-cone differential pressure valve. It comes in many configuration options but all have the common ball-and-spring mechanism that determine opening pressure. Also available with or without SiphonGuard AntiSiphon
Pressure Codes:
| Single dot |
10mm H2O (Very Low Pressure) |
| Two dots | 40mm H2O (Low Pressure) |
| Three dots | 70mm H2O (Medium Low Pressure) |
| Four dots | 100mm H2O (Medium High Pressure) |
| Five dots | 130mm H2O (High Pressure) |
