Deformity Thoracolumbar Posterior Spinal Fixation System

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar)

Features: K-Wire Cannulated , Polyaxial Head , Fixed Head , Extended Reduction Head Tabs

Screw Materials: Titanium

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative , Deformity , Trauma

By Material: Titanium (Solid) , Cobalt Chrome (CoCr)

DESCRIPTION

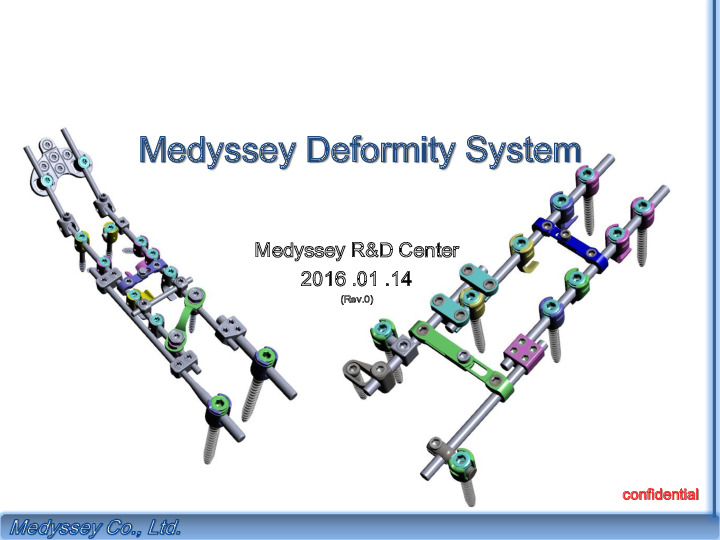

Deformity System by Medyssey is a thoracolumbar posterior spinal fixation system designed with various screw, rod, and connector options for customization to patient anatomy. The dovetail thread design of the screw head reduces the chance of cross threading, while the linear slot in the set screw compresses upon final tightening to increase holding forces and preventing screw back out. The screws are available in mono, poly, reduction mono, reduction poly, cannulated mono, and cannulated poly options, with a wide range of sizes. The rod options include straight, pre-bent, titanium alloy, and cobalt-chrome molybdenum alloy. There are diverse types and sizes of rod-to-rod connectors, dominos, hooks, and off-set connectors.

Features:

  • Dovetail locking system
  • Linear slot mechanism in set screw
  • Rod-to-rod connectors, dominos, hooks, and off-set connectors
  • Screw options:
    • Mono, poly, reduction mono, reduction poly, cannulated mono, and cannulated poly options
    • 4.0-10.0 mm diameter
    • 25-100 mm lengths
  • Rod options:
    • Straight and pre-contoured
    • Titanium alloy and cobalt-chrome molybdenum alloy
    • 5.5 and 6.0 mm diameter

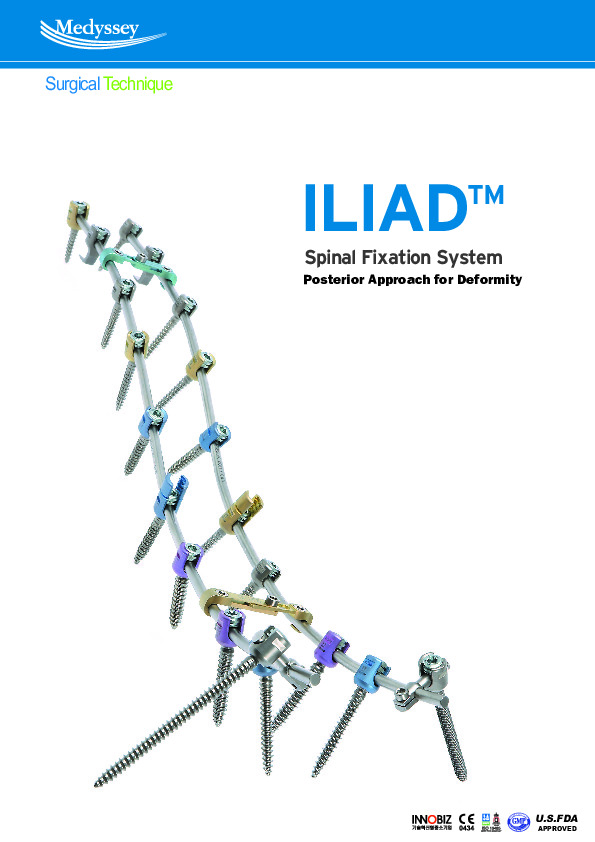

Product Brochures and Guides
