F3D Lateral Interbody Spacer

COMPANY: CoreLink (Zavation)

MANUFACTURER INFO:F3D Lateral Lumbar Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Lateral

Configuration: Cage Alone

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

Lateral Implant Width: 18mm , 22mm , 26mm

DESCRIPTION

The F3D Lateral Interbody by CoreLink (Zavation) is a 3D printed titanium with proprietary Mimetic Metal technology that wicks blood products and emulated cortical bone providing optimal structure for bony ingrowth. The cage features a high porosity with large central graft window.

Features:



  • 3D printed titanium with Mimetic Metal technology
  • Large central graft window

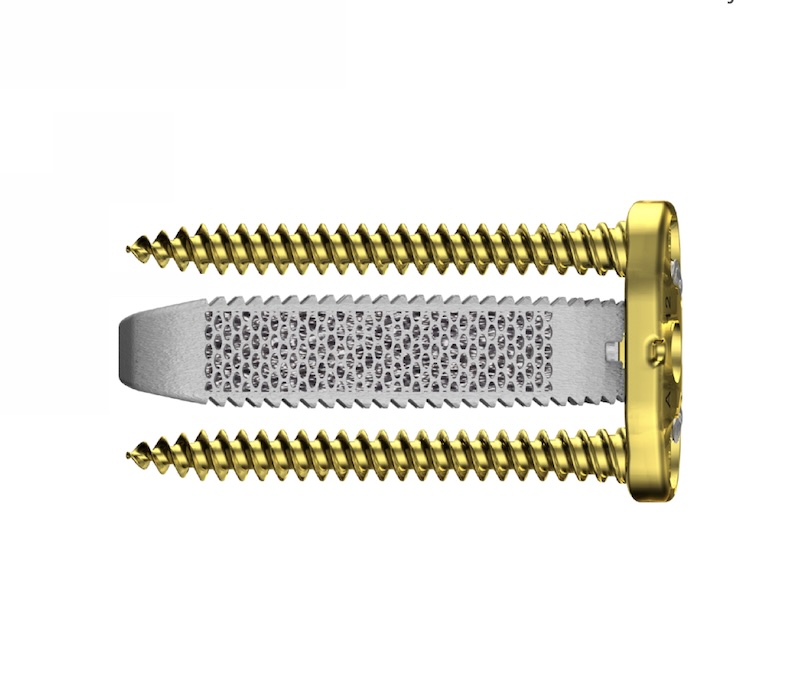

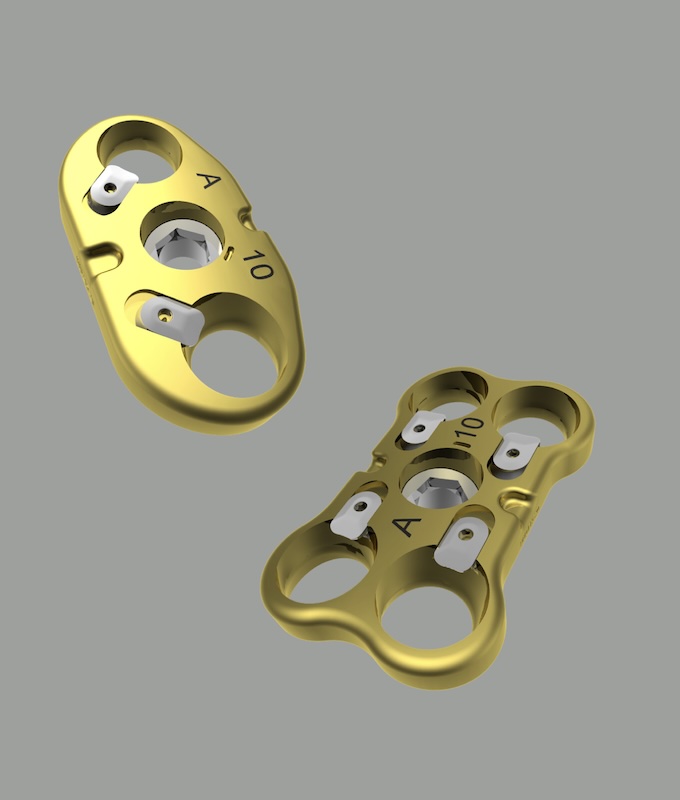

  • Optional lateral plate with the ORO plate that attaches directly with two or 4 hole options.
  • Width options:
    • 18mm
    • 22mm
    • 25mm
  • Lordosis options:
    • 0 degree
    • 8 degree
    • 12 degree
  • Height options:
    • 8-16mm in 2mm increments
  • Length options:
    • 35-60mm in 5mm increments

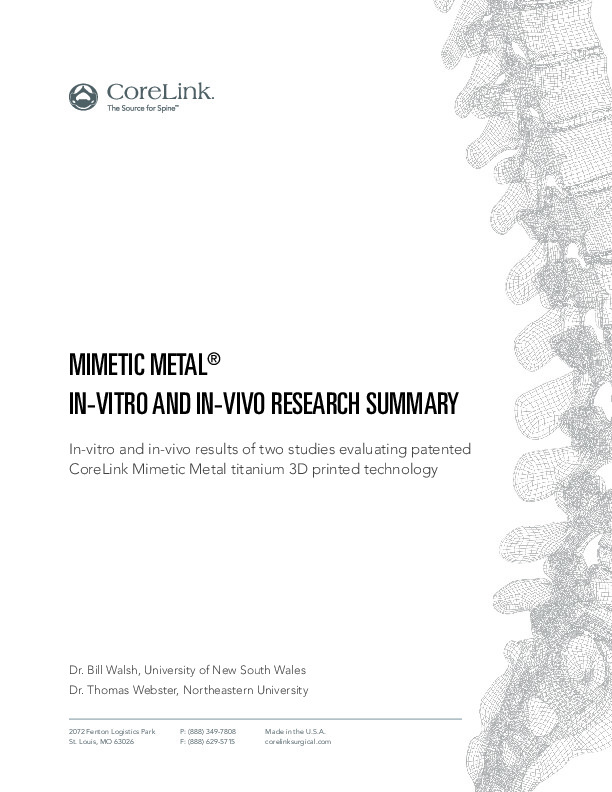

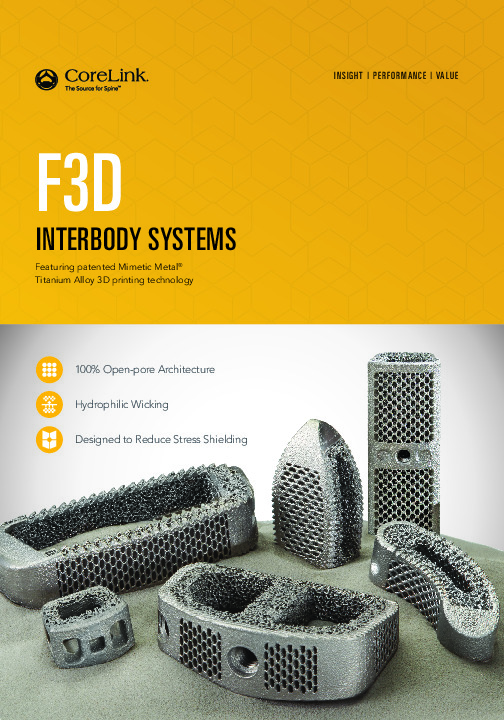

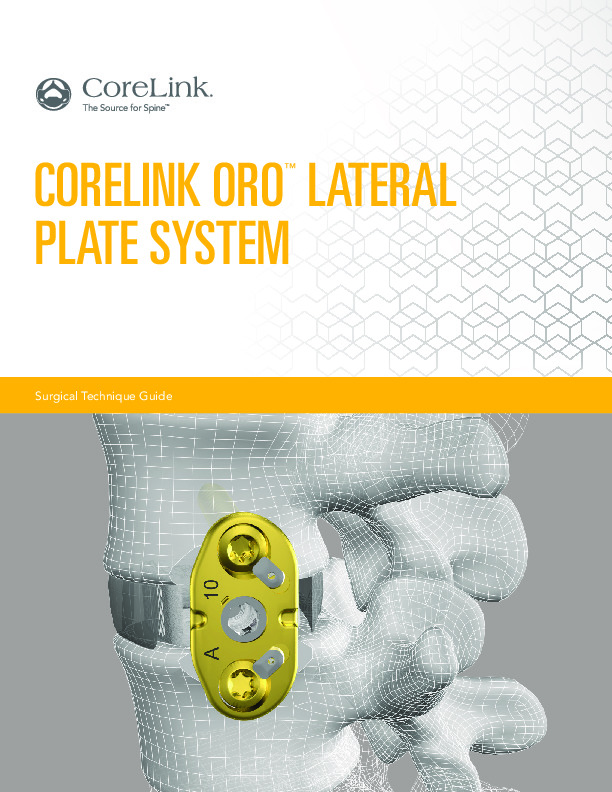

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
