HARRIER SA Stand-Alone 3D Printed Ti Porous Integrated ALIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

The HARRIER SA by Choice Spine is a 3D printed porous titanium Stand-alone ALIF spacer with integrated locking screws. It features a large graft window and porous trabecular endplate for increased bony ingrowth. HARRIER SA has 4 screw fixation and a locking cam to retain screws

Features:

  • Porous 3D printed titanium using BioBond trabecular porous structure
  • Integrated locking screw fixation cam
  • 45 degree angulation for screws

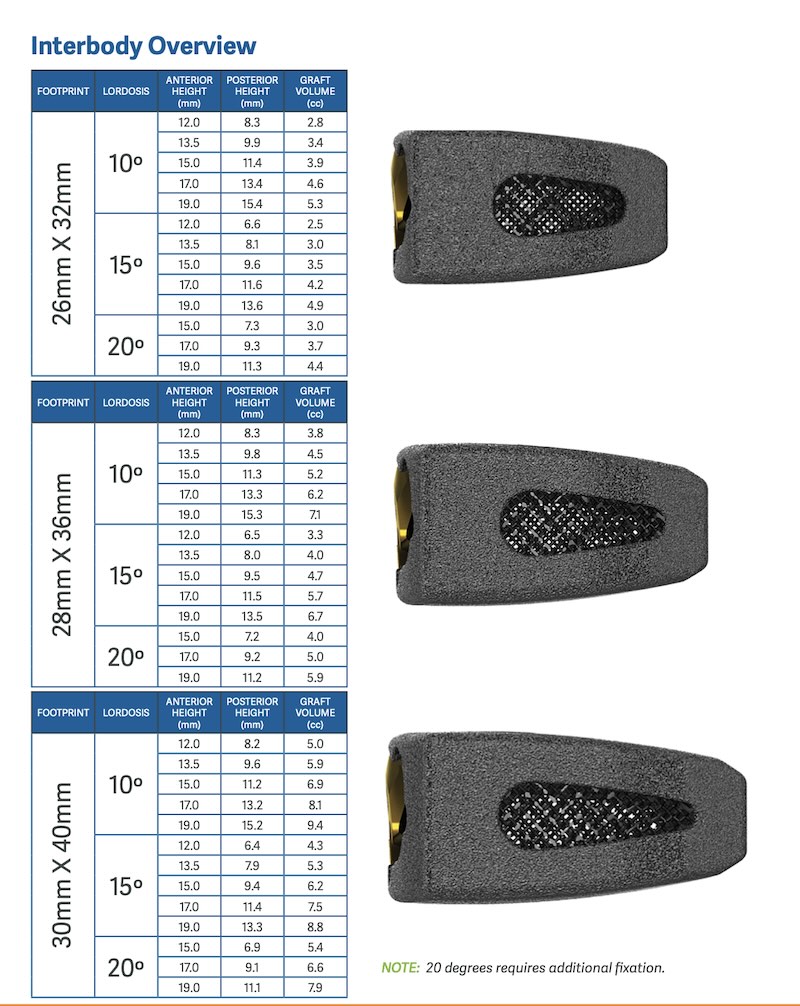

  • Footprint options: DxW
    • 26x32mm
    • 28x36mm
    • 30x40mm
  • Lordosis options:
    • 10 degree
    • 15 degree
    • 20 degree (requires supplemental fixation)
  • Height options:
    • 12, 13.5, 15, 17mm (for 10 and 15 degree cages)
    • 15, 17, 19mm (for 20 degree cages)
  • Screw diameters: 5.0, 5.5mm
  • Screw lengths: 20-40mm
