IdentiTi -ALIF LW/SW Large & Small Window 3D titanium Spacer

COMPANY: ATec

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: Cage Alone

By Material: 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

The IdenitiTi -ALIF SW & LW (Small window & Large Window) cages are 3D printed titanium Interbody spacers for use in the ALIF anterior lumbar interbody fusion procedure and intended for use in conjunction with supplemental fixation.

Features:


  • 3D Printed titanium porous structure

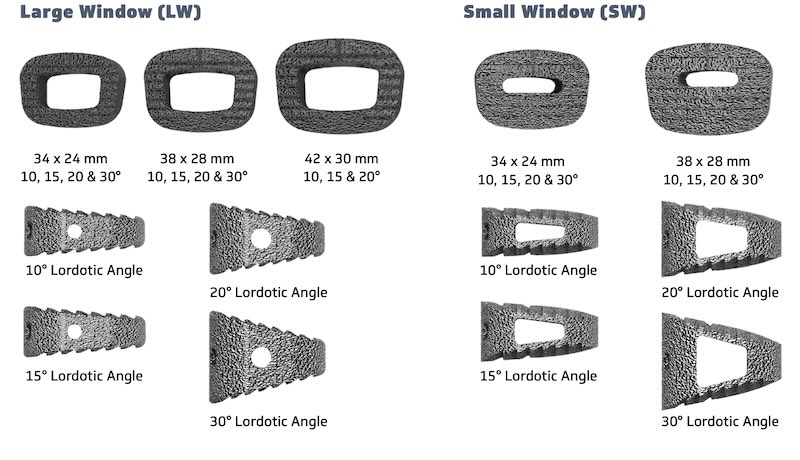

  • Large Window footprints:
    • 24x34mm
    • 28x38mm
    • 30x42mm
  • Large Window lordosis:
    • 10, 15, 20, 30 degree

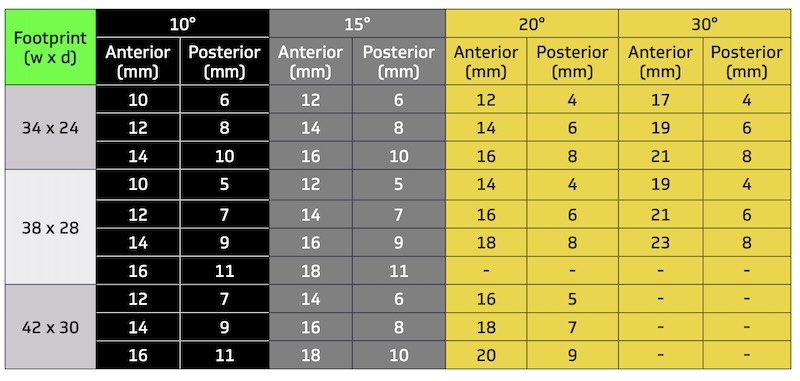

  • Large/Small Window height: (Anterior height)
    • 10 degree lordosis: 10-16mm
    • 15 degree lordosis: 12-18mm
    • 20 degree lordosis: 12-18mm
    • 30 degree lordosis: 17-23mm

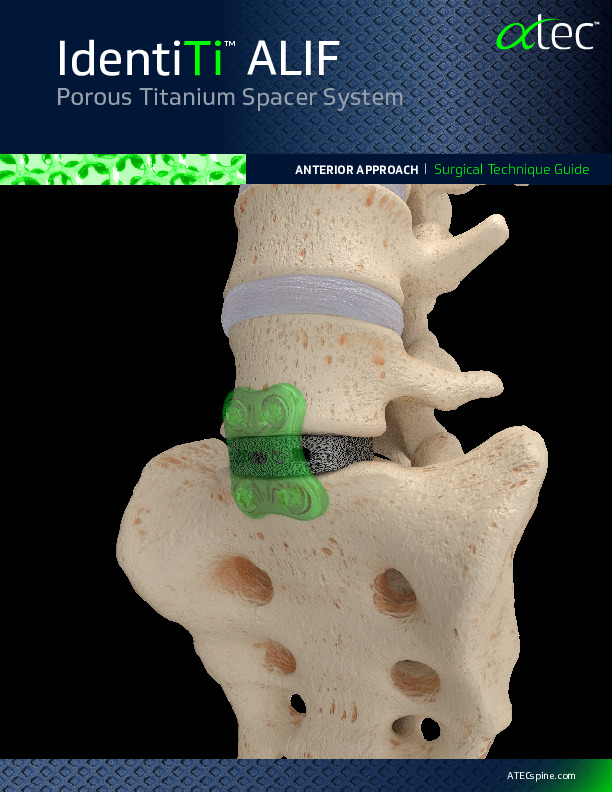

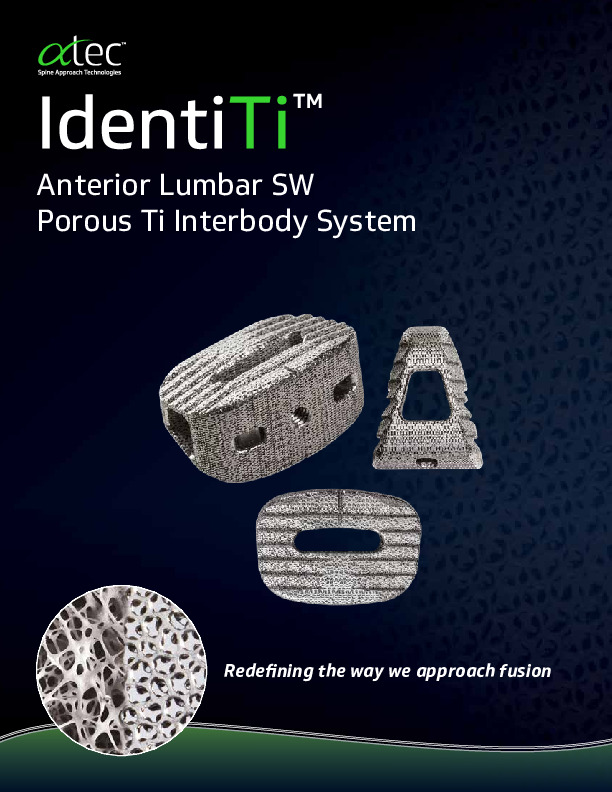

Product Brochures and Guides
