Invictus Thoraco-Lumbar Spinal Fixation

COMPANY: ATec

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Cervico-Thoracic) , Pedicle Screws (Thoraco-lumbar) , Iliac Bolts (S2AI)

Features: Polyaxial Head , Fixed Head , Favored Angle Head , Extended Reduction Head Tabs

Screw Materials: Titanium

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By System Type: Degenerative , Deformity , Trauma

By Material: Titanium (Solid)

DESCRIPTION

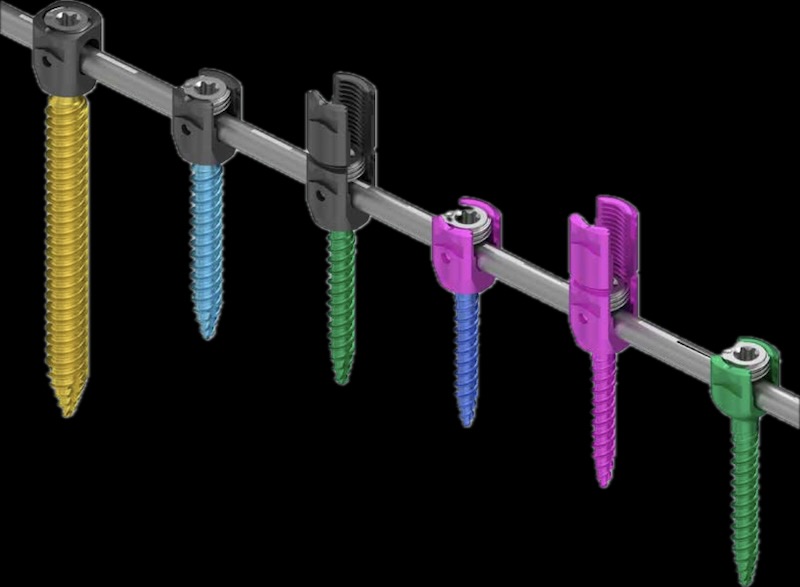

The Invictus Spinal fixation system by ATec is a comprehensive fixation system for use in the thoracic and lumbar spine, combined with the Invictus OCT it spans fixation from occiput to pelvis. The set comes with a variety of screw options.

Available Screws:


  • Polyaxial screw
    • 60 degree of conical angulation
    • Dual thread

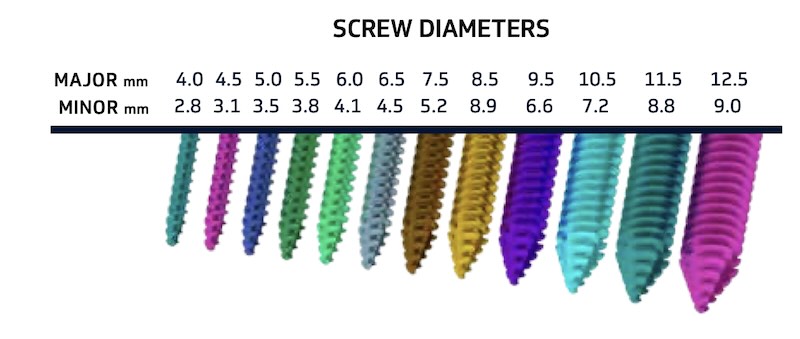

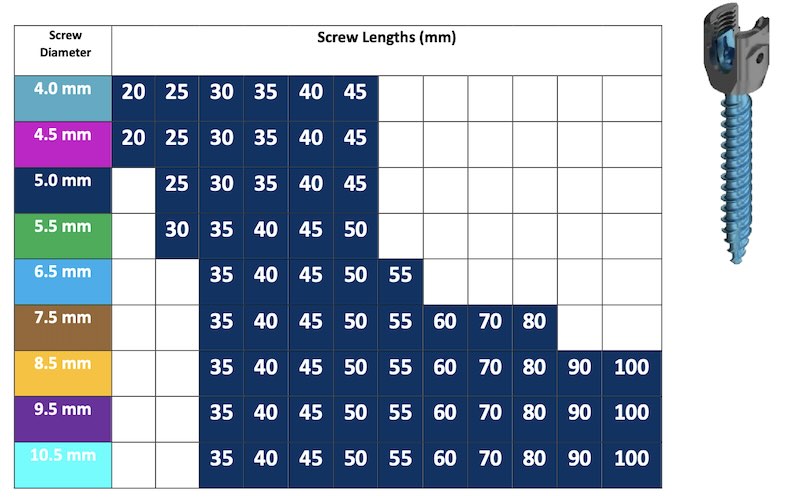

    • Screw diameters: 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.5, 8.5, 9.5, 10.5, 11.5, 12.5mm
    • Screw lengths: 20-60mm
    • Available with reduction head for an extra 15mm threaded reduction.
  • Iliac Polyaxial bolts:
    • 60 degree angulation
    • Dual thread
    • Screw diameters: 7.5, 8.5, 9.5, 10.5, 11.5, 12.5
    • Screw lengths: 60-130mm
  • Uniplanar Screws
    • 60 degree angulation in plane of rod only
    • Screw diameters: 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.5, 8.5
    • Screw lengths: 20-60mm
    • Available in reduction screws with 15mm extra threads
  • Monoaxial (Fixed) screws
    • Fixed screw for use in deformity reduction
    • Screw lengths: 4.5, 5.5, 6.5
    • Screw lengths: 20-55mm

Product Brochures and Guides
