Irix-C Standalone Zero Profile Titanium Plasma-Coated PEEK ACDF Spacer

COMPANY: Xtant Medical

MANUFACTURER INFO:Irix -C Standalone ACDF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: PEEK/Titanium , Titanium Coated PEEK , Titanium Plasma Sprayed

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

DESCRIPTION

Irix-C by Xtant Medical is a standalone zero profile ACDF spacer with integrated locking mechanism, made of titanium plasma-coated (PC) PEEK with an encapsulated titanum ring. The titanium plasma coating on the toothed surfaces provides better x-ray visibility of the endplate, and aids in migration resistance and osteointegration. A titanium ring within the PEEK body provides increased torsional strength, and xray visualization of the implant as well. The zero step integrated locking arm creates tactile, audible, and visual feedback to indicate screw retention.

Features:

  • Zero profile
  • Standalone implant with integrated locking mechanism
  • Radiolucent PEEK body
  • Titanium plasma-coating on bone interfacing surfaces
  • Encapsulated titanium ring
  • Self-tapping and self-drilling screws
  • Up to 6 degrees conical screw angulation (38 degree orientation)

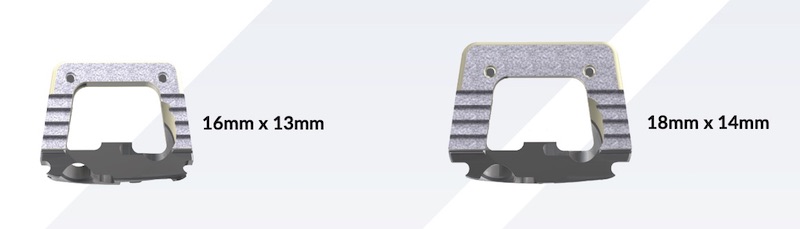

  • Footprint options (DxW):
    • 16 x 13 mm
    • 18 x 14 mm
  • Lordosis options:
    • 0 degree
    • 7 degree
  • Height options:
    • 5-12mm

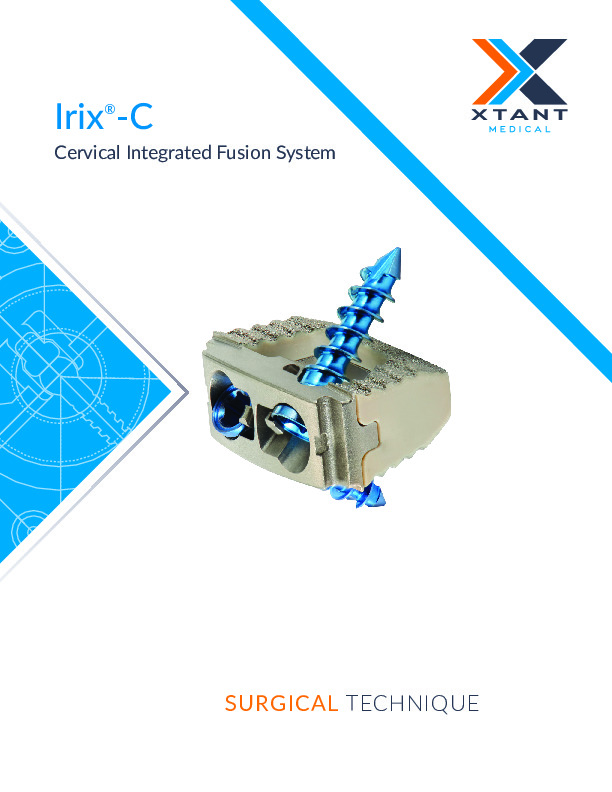

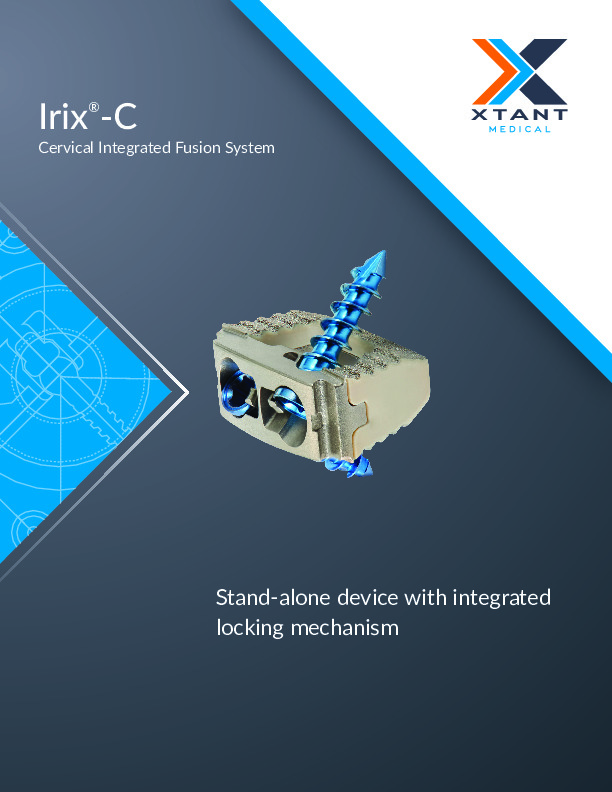

Product Brochures and Guides
