Meridian with Reef A Titanium Coated PEEK Anterior Lumbar Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: Cage Alone , 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK/Titanium , Titanium Coated PEEK

Plate Location: Thoracic/lumbar

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate , Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

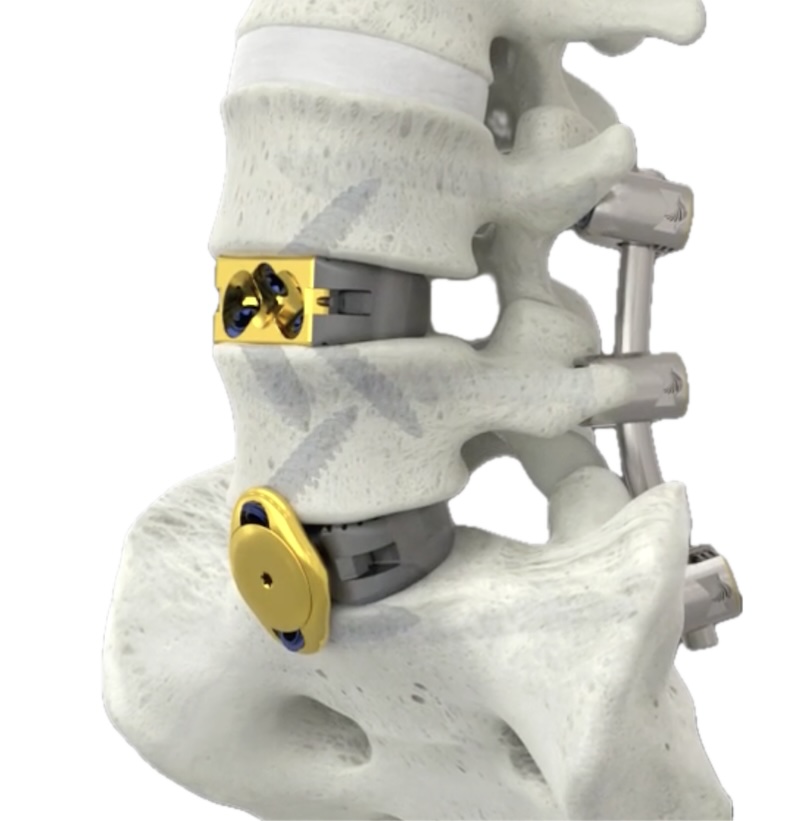

The Meridian with Reef A is an Anterior Lumbar Interbody Spacer for use in the ALIF procedure that can be used as a standalone or with supplemental fixation posteriorly. It is made of PEEK with Reef surface technology that undercuts the endplates and leads to increased fixation. It is coated in Nanometalene a 1 micron thick coating of pure titanium bonded to the PEEK.

Features:

  • Nanometalene 1 micron thick titanium coating over PEEK
  • Reef topography with undercut endplates for increased bony fixati0on
  • 4 plate options:
    • 2 hole integrated
    • 3 hole integrated
    • 2 hole TruProfile plate
    • 4 hole TruProfile Plate

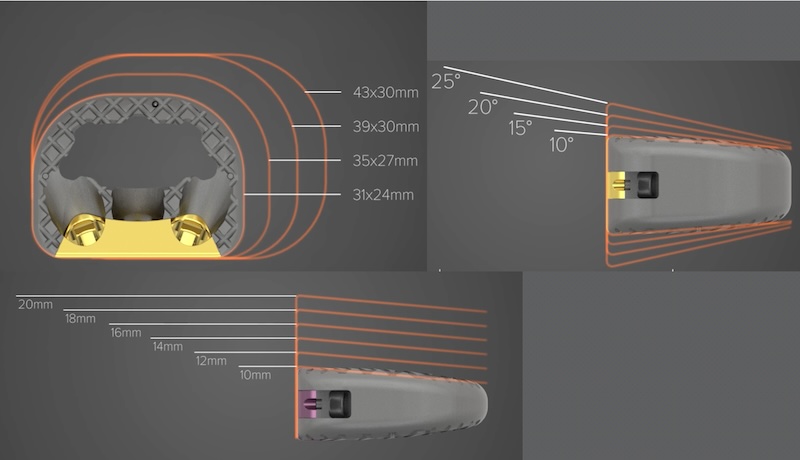

  • Footprint options:WxD
    • 31x24mm
    • 35x27mm
    • 39x30mm
    • 43x30mm
  • Height options:
    • 10, 12, 14, 16, 18, 20mm
  • Lordosis options:
    • 10, 15, 20, 25 degree
