Oasys Occipital plate

COMPANY: Stryker-K2M

SPECS

Product Category: Spinal Implants

By Location/Approach: Occipital , Anterior Cervical

By Product Type: Plates

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Procedure Type: PCF

By System Type: Degenerative

By Material: Titanium (Solid)

DESCRIPTION

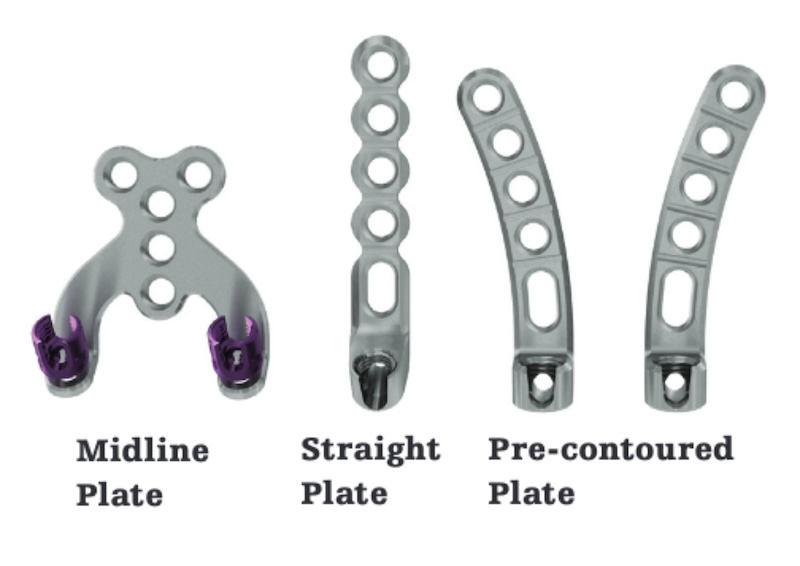

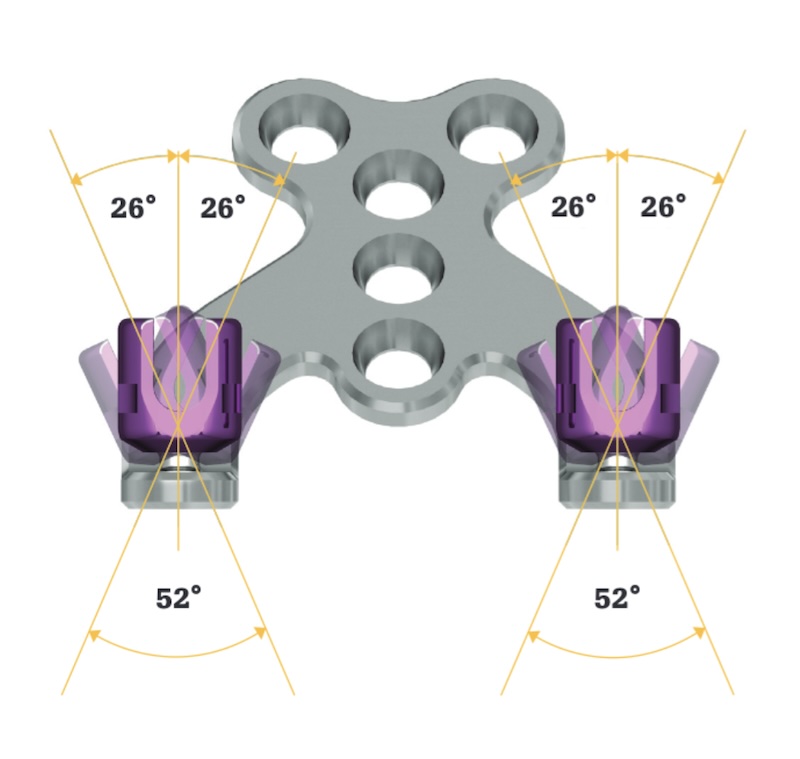

The Oasys Occipital plate by Stryker is a midline occipital plate with multiple screw holes for fixation to the midline keel. The plate allows for contouring and is available in 4 different sizes: small, medium, large and large long. The tulip heads of the plate are angled to fit in-line with C1

Features:

  • Plate sizes:
    • Small: 37mm length, 30mm width
    • Medium: 40mm length, 38mm width
    • Large: 45mm length, 43mm width
    • Large long: 49mm length, 43mm width
    • Mini: 33mm length, 27mm width
