OZARK Anterior Cervical Plate System - Stryker

COMPANY: Stryker-K2M

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity , Trauma

By Material: Titanium (Solid)

DESCRIPTION

Ozark Guide and View Cervical Plate System features an integrated locking cover and guide plate, and comes in a variety of implant sizes and screw dimensions.

 Features:

  •  Pre-lordosed to help match patient anatomy

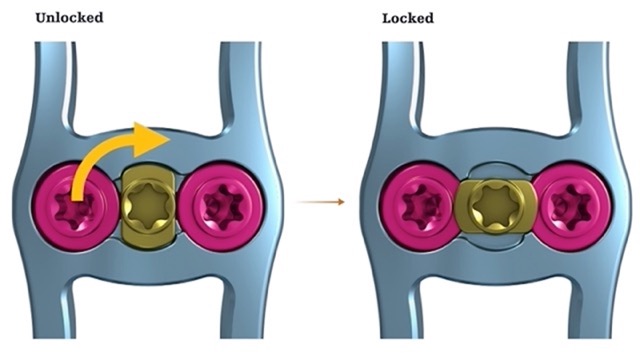

  • Integrated titanium alloy locking cover
  • 1–5 level plates
  • 17.4mm wide and 2.5mm thin

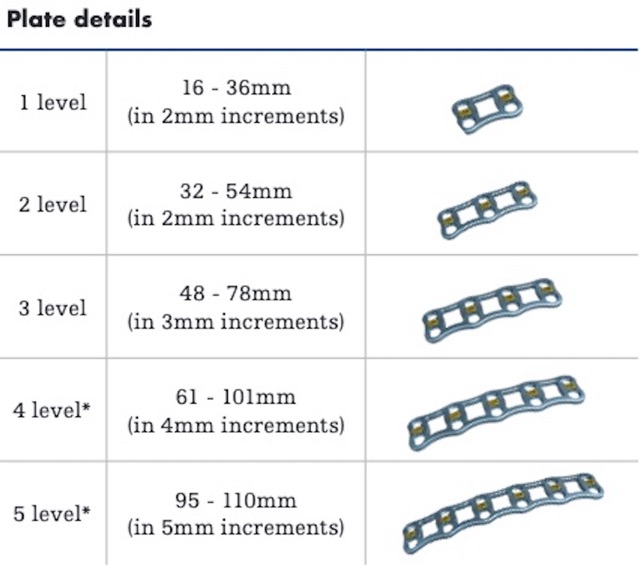

  • Plate sizes
    • 1 level 16 - 36mm (in 2mm increments)
    • 2 level 32 - 54mm (in 2mm increments)
    • 3 level 48 - 78mm (in 3mm increments)
    • 4 level 61 - 101mm (in 4mm increments)
    • 5 level 95 - 110mm (in 5mm increments)

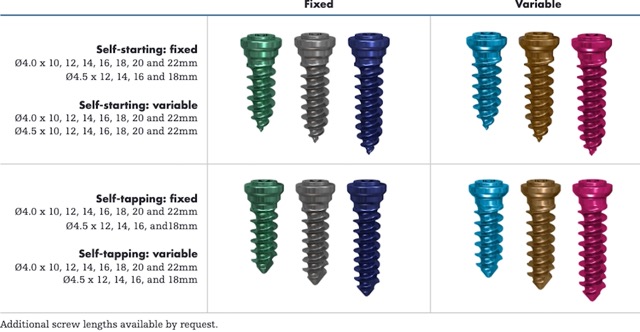

  • Self-starting and self-tapping screw options
  • 12, 14, and 16mm standard lengths
  • 4.0mm standard and 4.5mm Rescue Screws
  • Fixed screws can be inserted ±2° and variable screws can be inserted ±15°
