Prodisc C Nova Cervical Artificial Disc

COMPANY: Centinel Spine

SPECS

Product Category: Spinal Implants

By Product Type: Artificial Disc (TDR)

Location: Cervical Disc Replacement

Insertion Approach: Anterior approach

TDR Characteristics: Keel-based

Disc Articulation Characteristics: Metal-on-Poly

By Location/Approach: Anterior Cervical

By Procedure Type: ACDA

By System Type: Degenerative , Motion Preservation

By Material: Titanium Plasma Sprayed , Cobalt Chrome (CoCr)

DESCRIPTION

The Prodisc C Nova by Centinel Spine is a cervical artificial disc arthroplasty for use in the C3-7 subaxial spine. The disc differs from the other Prodisc C options in that it contains a tri-keel design with a single small keel on the superior endplate and two keel on the inferior endplate for optimal stabilization. The endplates are composed of CoCrMo (Cobalt-28Chrome-6Molybdenum) with titanium plasma sprayed coating. The inlay is UHMWPE

Features:



  • Endplates made of Cobalt-Chrome-Molybdenum alloy.
  • Single level indication only
  • Endplates roughened with Titanium plasma sprayed

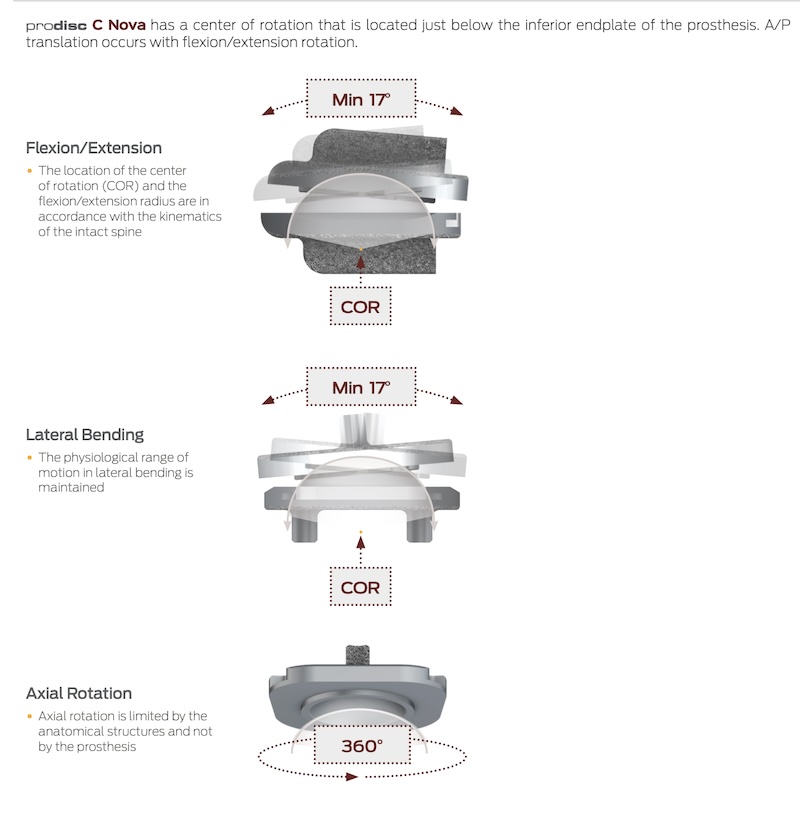

  • Range of motion:
    • 17 degree flexion/extension
    • 17 degree lateral bending
    • Unconstrained axial rotation

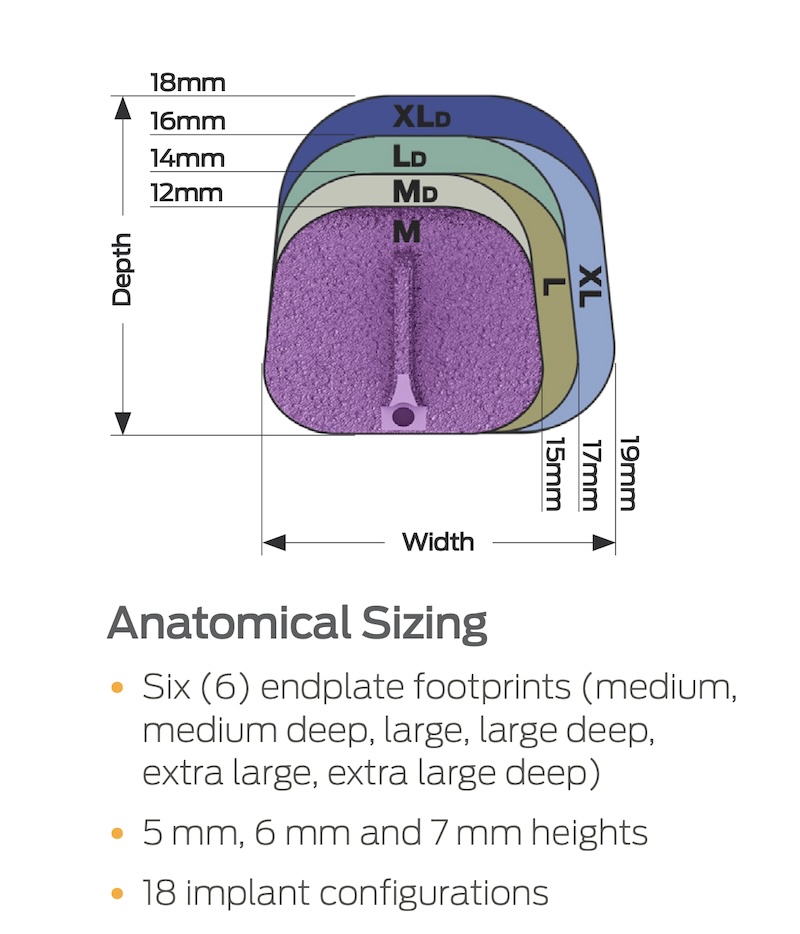

  • Endplate footprint: DxW
    • Medium: 12x15mm
    • Medium deep: 14x15mm
    • Large: 14x17mm
    • Large deep:16x17mm
    • XLarge: 16x19mm
    • XLarge deep: 18x19mm
  • Composition:
    • Endplates: CoCrMo (Cobalt-28Chrome-6Molybdenum)
    • Inlay: UHMWPE

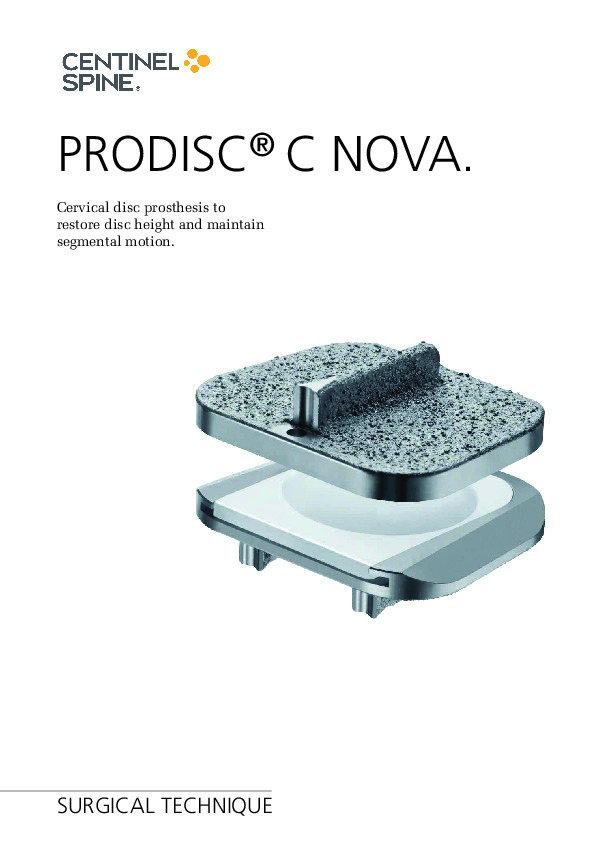

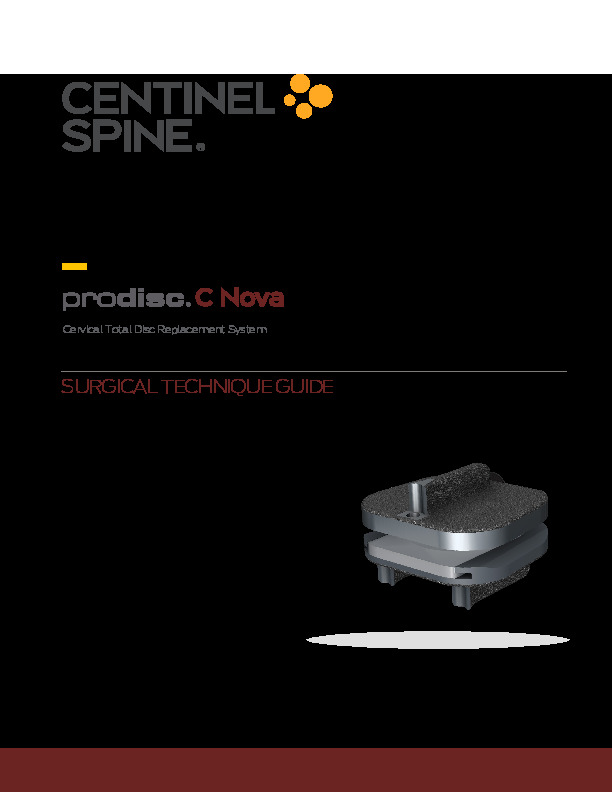

Product Brochures and Guides
