Quasar 3D Ti & HA-PEEK Stand-Alone ACDF Spacer and Plate

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage

Plate Location: Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws) , Low profile plate attached

By Material: 3D Printed Titanium , PEEK Solid block , HA (Hydroxyapatite) Integrated PEEK

Plate Approach: Anterior Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

DESCRIPTION

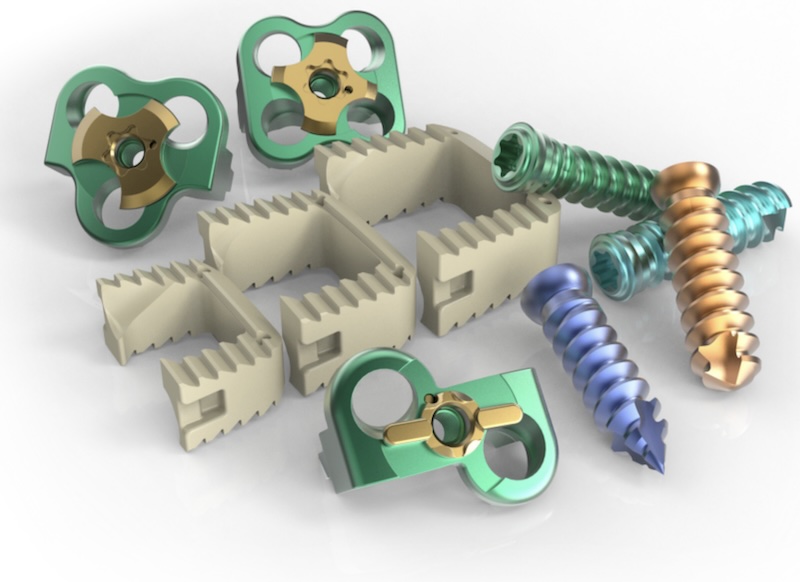

The Quasar 3D Ti Stand Alone ACIF spacer by GS Medical is a stand-alone ACDF plate and spacer modular unit that is available in 2 material options: 3D printed porous titanium and HA(Hydroxyapatite)-integrated PEEK. The ACDF spacer is an integrated zero-profile plate that assembles to the spacer for an integrated stand-alone ACDF procedure. Plate options include a 2, 3, and 4 hole minimal profile and zero-profile.

Features:


  • Materials:
    • HA-Integrated PEEK
    • 3D printed porous titanium spacer
  • Integrated and assembled plate and spacer form a zero-profile implant.
  • Plate options:
    • 2-hole zero-profile
    • 2-hole minimal profile
    • 3-hole
    • 4-hole minimal profile

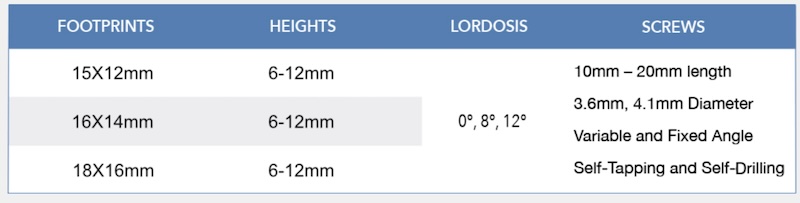

  • Footprint options: WxD
    • 15x12mm
    • 16x14mm
    • 18x16mm
  • Lordosis options:
    • 0 degree
    • 8 degree
    • 12 degree
  • Height options:
    • 6-12mm
  • Screw options:
    • Diameters: 3.6mm, 4.1mm
    • Length: 10-20mm
    • Fixed and variable angle screw

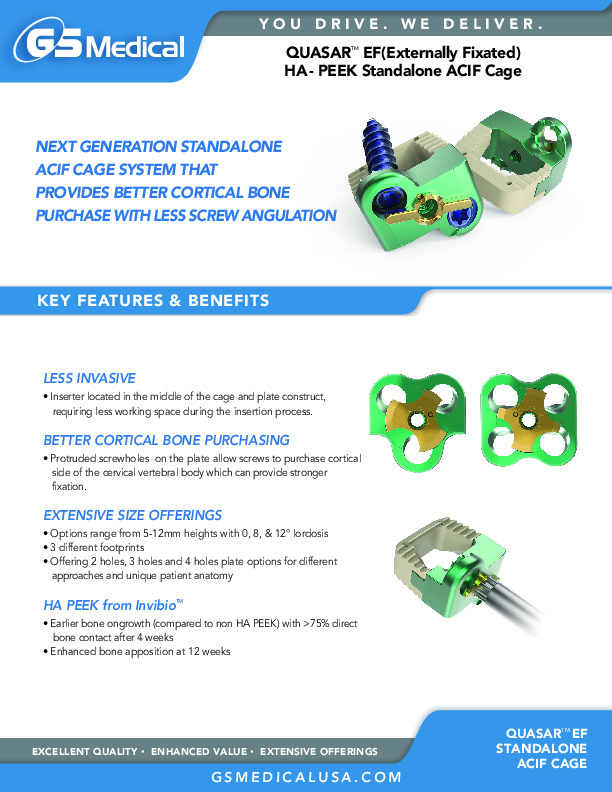

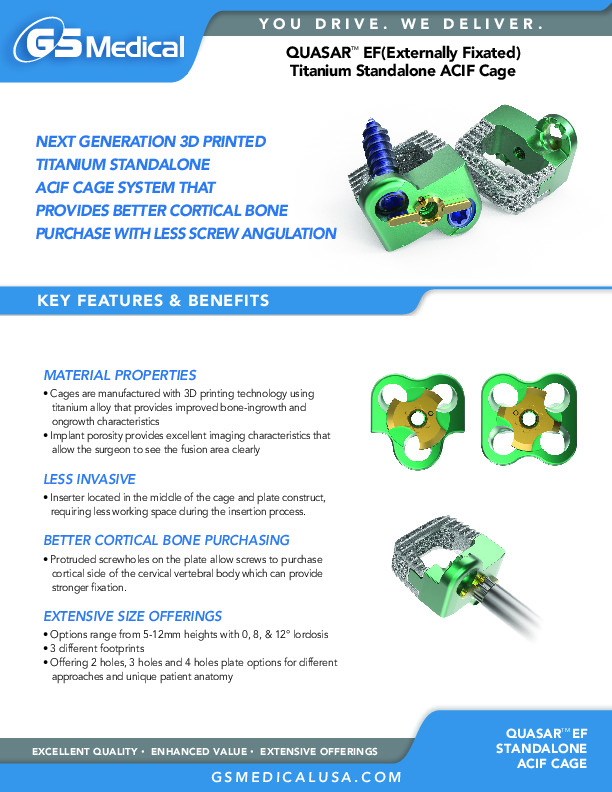

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
