Shoreline ACS Low profile and 0-Profile Titanium Coated PEEK ACDF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage

Plate Location: Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: Cage Alone , 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK/Titanium , Titanium Coated PEEK

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate , Minimal Profile

Plate Dynamics: Static Plate

DESCRIPTION

The Shorline ACS is an ACDF spacer with multiple profile options for fixation including an integrated zero-profile fixation and a low profile plate option with 2, 3, or 4 screw hole plate options. The plates compress on to the Titanium coated PEEK spacer (Nanometalene) to increase bony ingrowth and increase fusion rates. The low profile and integrated plates allow for decreased adjacent segment disease.

This is similar to the Shoreline RT (Reef Topography) and features the same nanometalene surface technology but has a different surface corrugation.

Features:

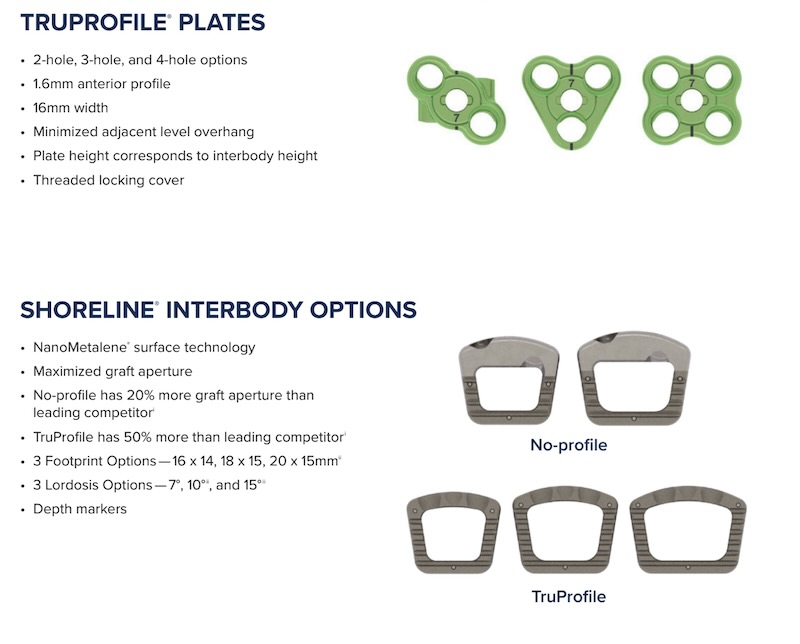

  • Nanometalene titanium coated PEEK Spacer in multiple footprints

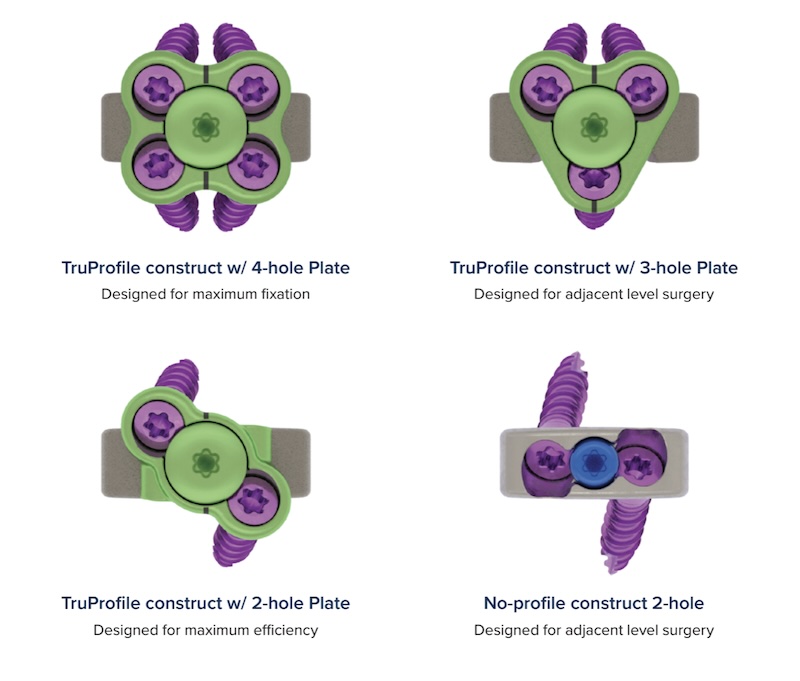

  • Anterior plate options in:
    • Integrated zero-profile, 2 screw
    • Low profile 2 screw plate
    • Low profile 3 screw plate
    • Low profile 4 screw plate
  • Screw locked with low profile cap screw
  • Footprint options:
    • 14x16mm
    • 15x18mm
    • 15x20mm

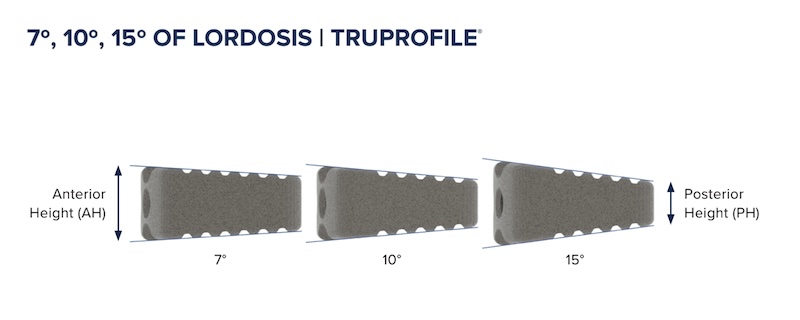

  • Lordosis options:
    • 7, 10, 15 degree
  • Height options: (anterior height)
    • 5-12mm in 1mm increments

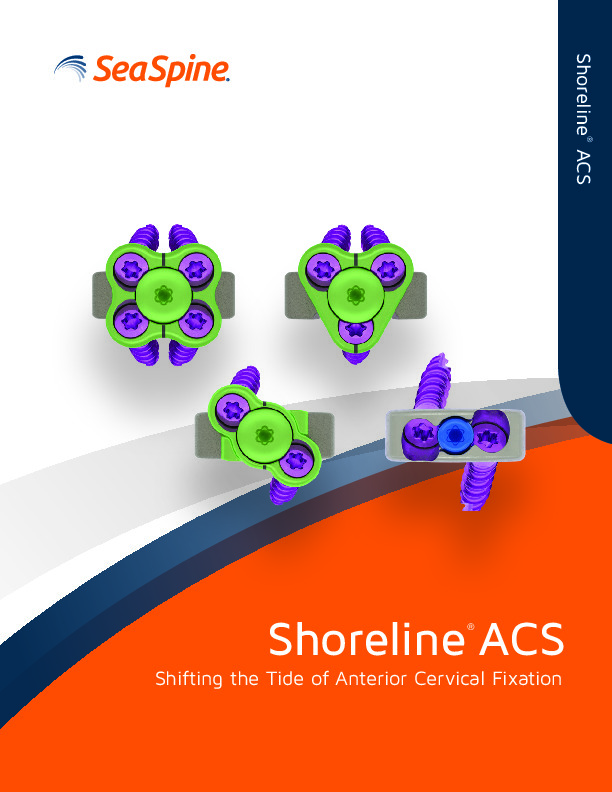

Product Brochures and Guides
