Standalone ALIF TRUSS 3D Printed Titanium Integrated Screws

COMPANY: 4WEB

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid) , 3D Printed Titanium , Titanium Plasma Sprayed

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

The Anterior Spine Truss System - Stand Alone (ASTS-SA) ALIF interbody fusion spacer with integrated screw fixation by 4WEB utilizes an open architecture 3D printed titanium cage design with a zero-profile integrated locking screw fixation for use in the ALIF approach.

Features:


  • 3D printed titanium with roughened surfaces
  • Open truss architecture for large amount of graft packing and bony ingrowth
  • 3 screw fixation with 1 step locking design
  • Zero-profile design
  • Bi-convex endplate for maximal contact

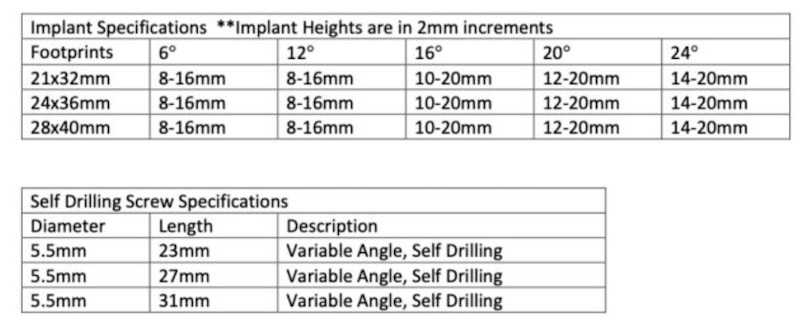

  • Footprint options:
    • 21x32mm
    • 24x36mm
    • 28x40mm
  • Lordosis options:
    • 6 degree
    • 12 degree
    • 16 degree
    • 20 degree
    • 24 degree
  • Height options:
    • 8-20mm

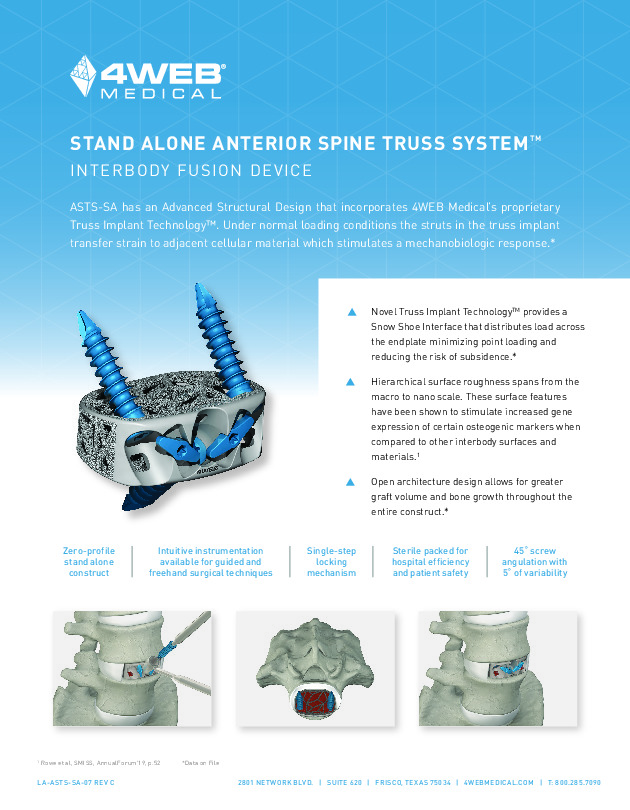

Product Brochures and Guides
