Truss Lateral Lumbar Interbody 3D Titanium

COMPANY: 4WEB

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Thoracic,Lumbar

Expansion: Static

Cage Approach: Lateral

Configuration: Cage Alone , Low profile plate attached

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Anterior/Lateral Thoracic , Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

Lateral Implant Width: 18mm , 22mm

DESCRIPTION

The Lateral Spine Truss Interbody Spacer by 4WEB is an open architecture 3D printed titanium cage with bi-convex endplates for use in the direct lateral approach and the Anterior-To-Psoas approach. The open nature of the graft allows load distribution thereby decreasing the risk for subsidence.

Features:



  • 3D printed titanium with roughened endplates
  • Open architecture design for maximal filling with graft and bony ingrowth
  • Intended to be used with supplemental fixation

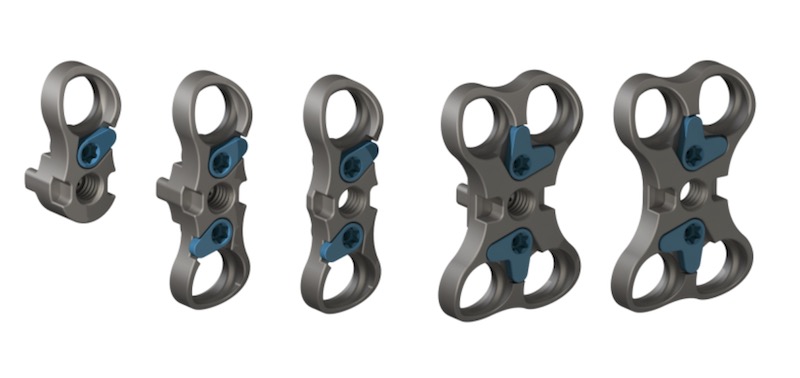

  • Has optional integrated lateral plate 1,2, and 4 acrew plate options.
  • Width options:
    • 18mm
    • 22mm
  • Lordosis options:
    • 0 degree
    • 6 degree
    • 12 degree
  • Length options:
    • 45-60mm in 5 mm increment
  • Hight options:
    • 8-14mm

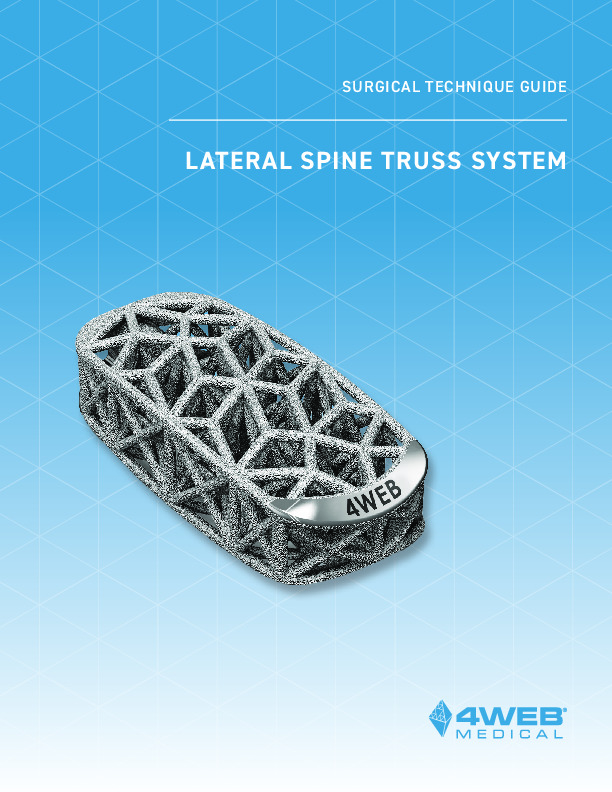

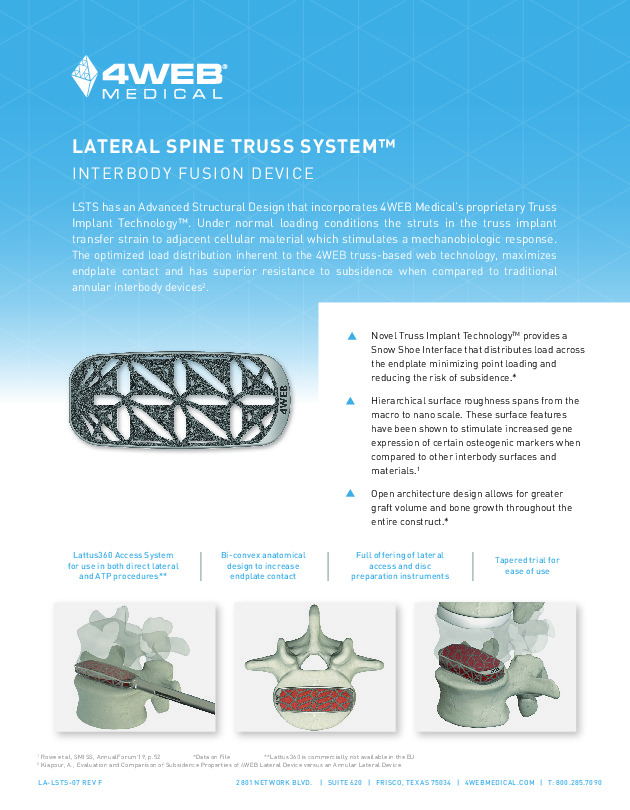

Product Brochures and Guides
