Zero-Profile Cervical Spine Truss System Stand Alone ACDF

COMPANY: 4WEB

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid) , 3D Printed Titanium , Titanium Plasma Sprayed

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

DESCRIPTION

The Cervical Spine Truss System - Stand Alone ASTS-SA is an open architecture 3D printed titanium spacer with titanium plasma sprayed coating and features a zero-profile integrated screw fixation.

Features:

  • 3D printed titanium with plasma sprayed titanium coating
  • Open architecture for optimal graft packing
  • Optional MIS Anchor fixation in place of screws
  • Truss system for load distribution

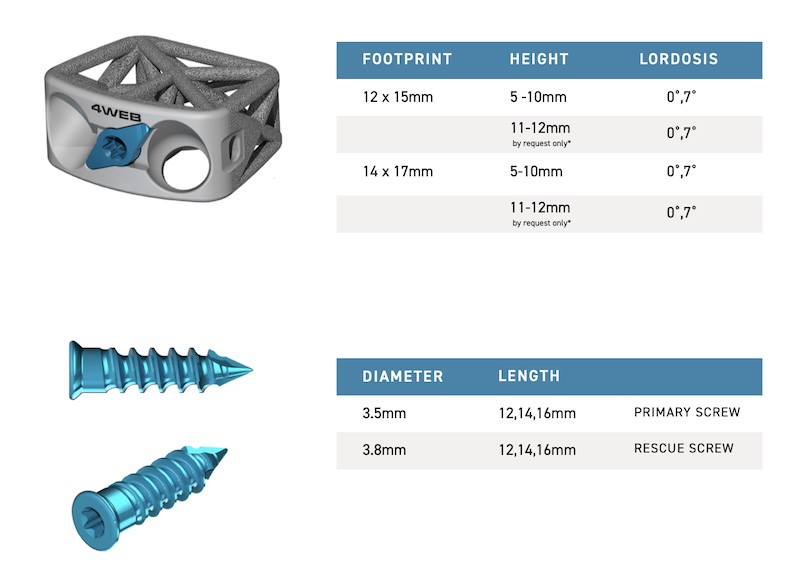

  • Footprint options:
    • 12x15mm
    • 14x17mm
  • Lordosis options:
    • 0 degree
    • 7 degree
  • Height options:
    • 5-12mm
  • Screw options:
    • 3.5mm, 3.8mm: 12, 14, 16mm

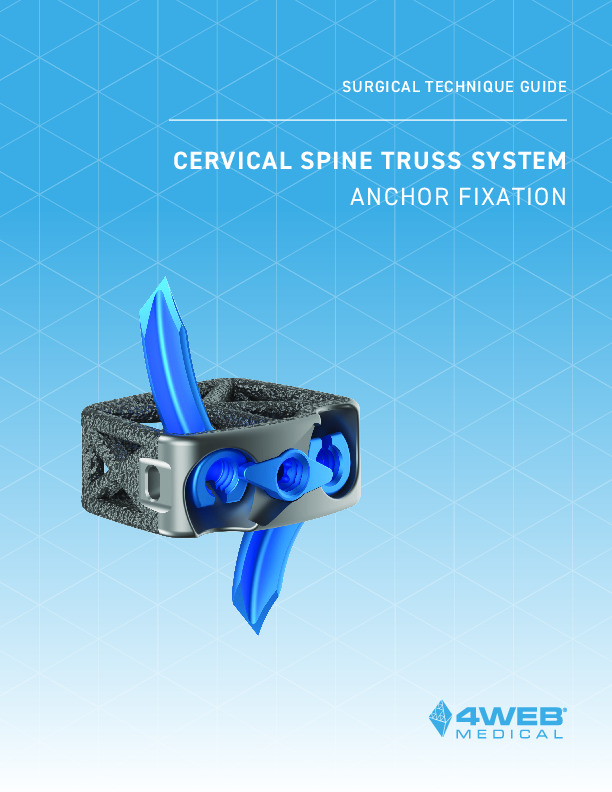

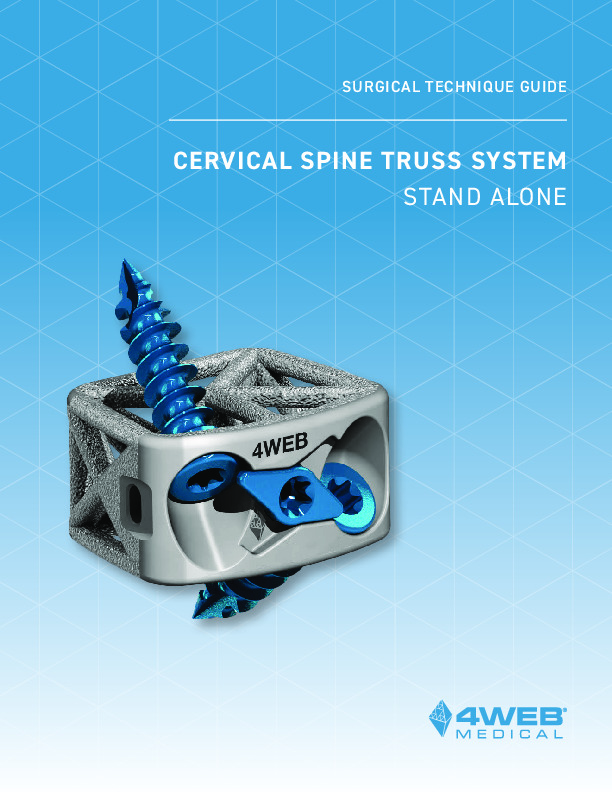

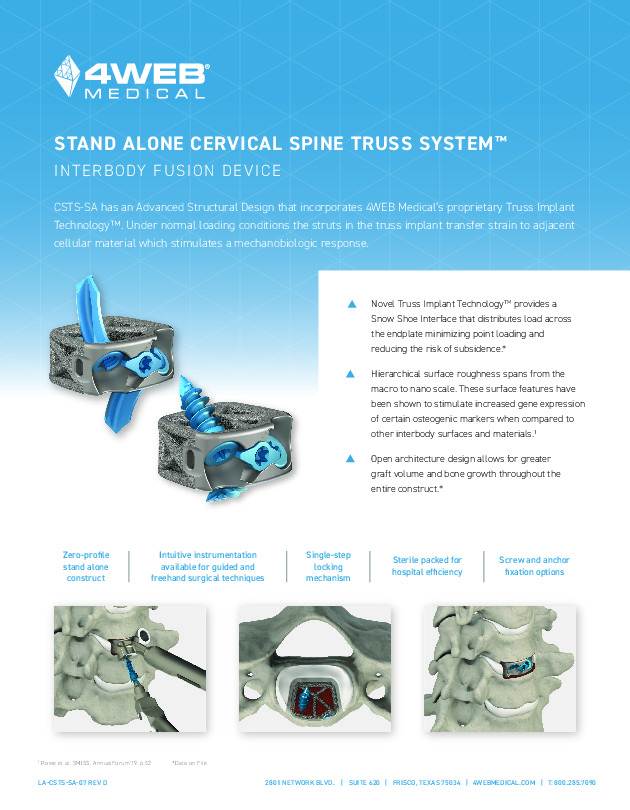

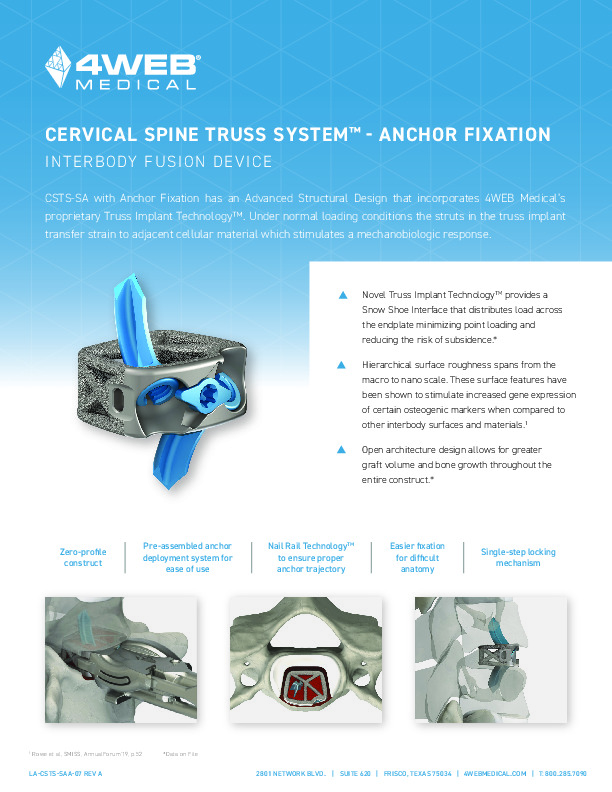

Product Brochures and Guides
