Axis-ALIF Stand-Alone PEEK-Titanium Modular ALIF Spacer

LEAVE A REVIEW

COMPANY: AXIS Spine Technologies

MANUFACTURER INFO:Axis-ALIF Stand-Alone PEEK-Titanium Modular ALIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static , Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis) , Parallel Expansion (Progressive Lordosis)

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: PEEK Solid block , PEEK/Titanium , Titanium Plasma Sprayed

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

The Axis-ALIF by AXIS Spine Technologies is a modular anteiror lumbar interbody fusion spacer system that aims to address severeal issues in lumbar spine surgery including disc height for indirect decompression, spinal lordosis and coronal deformity all while preserving endplates. This is accomplished via Axis-ALIF Endplate first technology that allows the titanium plasma sprayed endplates to be inserted and a modular PEEK spacer to be placed with atraumatic insertion to lift and seperate the endplates. There is a wide graft window that allows backfilling and integrated locking screws for stand-alone fixation.

Features:

Stand-alone fixation with integrated screws and a locking plate
Titanium endplates with titanium plasma sprayed coating for osseous integration

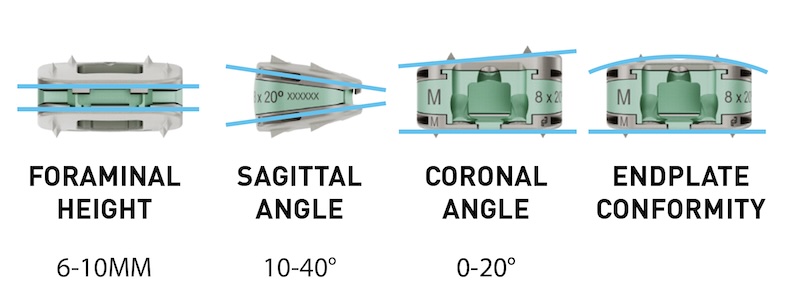

Modular PEEK internal spacer with multiple configuations including height, sagittal lordosis, coronal angulation

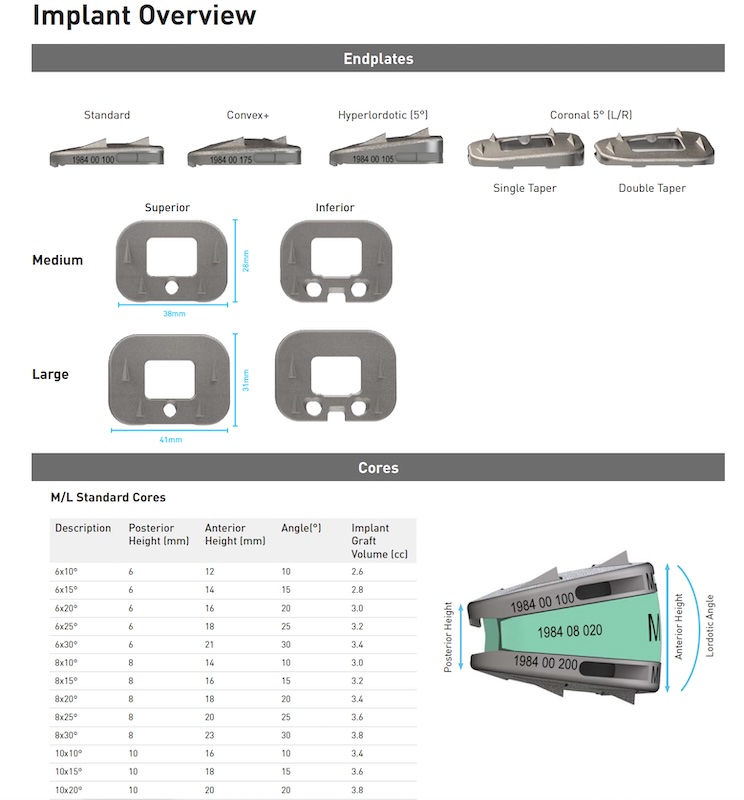

Edplate options:
- Standard flat
- Anatomic (Convex)
- Hyperlordotic (5 degree)
Footprint options: WxD
- 38x28mm
- 41x31mm
Lordosis options:
- 10 degree
- 15 degree
- 20 degree
- 25 degree
- 30 degree
Height options:
- 12-21mm
Screw fixation options:
- 4.4mm x 20-35mm
