EVOS-HA Rotate HA Integrated PEEK PLIF & TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Posterior/Straight (PLIF) Cage,Oblique Cages

Configuration: Cage Alone

By Material: HA (Hydroxyapatite) Integrated PEEK , PEEK Solid block , HA (Hydroxyapatite) Coated

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , Deformity

Cage Material: HA Coated (Hydroxyapatite)

DESCRIPTION

EVOS-HA Rotate is a lumbar interbody spacer made of PEEK-OPTIMA HA Enhanced polymer, and is one of three styles (curved, straight, and rotate) in the EVOS-ha lumbar interbody system by Cutting Edge Spine. It can be inserted via posterior (PLIF) or transforaminal (TLIF) approach. The innovative compound of PEEK-OPTIMA Natural and fully integrated hydroxyapatite (HA) encourages bone on-growth while providing the strength versatility, and performance of PEEK.

Features:


  • Early bone apposition
  • Central graft chamber
  • Lateral windows to allow additional bone through-growth
  • Unilateral, bilateral, or oblique placement
  • True Oblique Lordotic (TOL) design has accurate lordosis at 30 degree oblique placement
  • In situ distraction of 1-4 mm with 1/4 turn
  • Endplate options:
    • biconvex, or flat
  • Length options:
    • 22, 26, and 30 mm
  • Width options:
    • 8-12 mm in 1 mm increments
  • Height options:
    • 9-16 mm in 1 mm increments
  • Lordosis options:
    • 0 degree
    • 5 degree
    • 8 degree
    • 13 degree
    • 17 degree

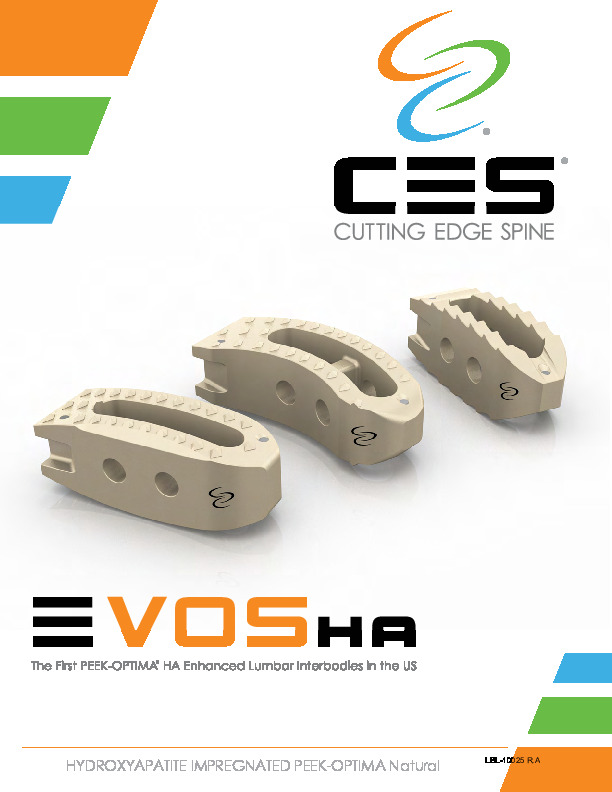

Product Brochures and Guides
